MANUAL APPLICATION 1UZ VVVT-i WIRING
What you can Expect:
.

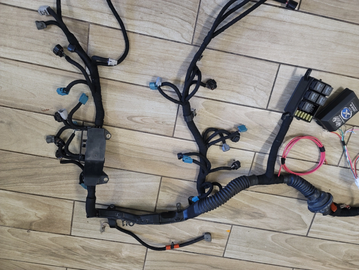

🔌 1UZ-FE VVT-i Manual Conversion Wiring
💰 Starting at $750
Base price includes immobilizer bypass
Final cost depends on harness condition, replacement connector housings, and the additional connectors / client plug configuration required for your specific build
The 1UZ-FE VVT-i is the minimum supported platform in our lineup, but it remains an excellent OEM engine management option for engine swaps. With coil-on-plug ignition, OBD2 diagnostics, and strong factory reliability, it offers a major improvement over the older non-VVT systems.
We provide a full manual conversion / standalone harness rework service for the 1UZ-FE VVT-i, turning your original factory harness into a clean, reliable, standalone engine management system built specifically for swap use.
✅ What’s Included
⚙️ Manual Transmission Harness Rework
Your original automatic harness is reworked for manual transmission use, with unnecessary loom sections removed and the system simplified into a clean standalone layout.
The result is a much neater harness with only the wiring required to run the engine properly and interface with the receiving vehicle.
🔧 Standalone System Conversion
Each harness is converted into a standalone engine management system with its own integrated fuse and relay setup.
This allows the engine to operate independently of the original Lexus chassis wiring and makes installation far simpler than adapting the original harness layout as-is.
All systems are built around OEM Toyota / Lexus logic for proper operation and long-term reliability.
🧩 Application-Specific Connector and Client Plug Configuration
Every build requires additional connectors, interface provisions, and a client plug arrangement to suit the specific application.
This is a mandatory part of the build and varies according to the project, including:
- chassis type
- ECU position
- transmission setup
- fuse box location
- requested outputs
- overall installation layout
No two projects are exactly the same, so each harness is configured to suit the job at hand.
🛠️ Full Harness Refurbishment and Rebuild
Every harness is fully stripped, opened, inspected, and rebuilt.
We remove the original wrapping and inspect the harness branch by branch for insulation quality, wire condition, and overall construction.
As part of our upgraded process:
- every engine-side connector is removed
- all terminals are replaced
- all seals are replaced
- all connector outlet branches are finished in braided roving tube
Once the connectors are removed, any broken, brittle, cracked, or damaged connector housings are revealed and replaced as required.
This produces a beautifully rebuilt harness that has been fully gone through for:
- insulation quality
- connector condition
- terminal and seal integrity
- construction quality
- durability and finish
The result is not just a cleaner-looking harness, but a far more thoroughly rebuilt and properly prepared system.
🔓 Immobilizer Bypass Included
The base price includes immobilizer bypass where required.
This allows the ECU to operate correctly in a swap application without being locked out by the original vehicle security system.
🚗 Simplified Startup via Client Plug
Your finished harness includes a client plug to simplify installation into the receiving vehicle.
In most cases, the core startup connections are straightforward:
- Ignition power
- Start signal
- Fuel pump trigger / control
Optional outputs can also be provided depending on the build, including:
- tach signal
- temperature gauge signal
- charge light
- oil pressure light
- engine light / MIL output
⚠️ Important Notes
💡 Pricing
$750 is the starting price only.
This includes the core harness rework and immobilizer bypass, but final pricing depends on the condition of the harness and the exact requirements of the build.
🔌 Connector Housing Replacement
All engine-side terminals and seals are renewed as part of our upgraded process.
If connector housings are found to be broken, brittle, cracked, or damaged, those housings are replaced at additional cost as required.
🧩 Added Connectors and Client Plug Requirements
Additional connectors, branch provisions, and client plug arrangements are a required part of the standalone conversion and vary according to the application.
Because of this, the number and type of added components cannot be standardized across every harness.
🚙 Vehicle-Side Integration
The engine harness is built as a standalone system, but final connection into your vehicle will still depend on the chassis and the level of integration required.
📋 Manual-Swap Note
The 1UZ-FE VVT-i ECU runs the engine very well, but it is still an older OEM platform. In some manual transmission applications, automatic transmission-related fault codes may still remain depending on the final management approach.
🔍 Why Choose the VVT-i Version?
⚡ Ignition System: Coil-on-plug
🖥️ Diagnostics: Full OBD2 diagnostics
🧠 Engine Management: More modern OEM control strategy
🔧 Swap Suitability: Better OEM starting point
✅ Reliability: Strong OEM reliability
🛎️ Service Support:
The 1UZ-FE VVT-i is the stronger choice if you want to retain OEM management while benefiting from a more modern Lexus engine control system.
It provides better diagnostics, a more refined ignition system, and a far better base for a proper standalone harness conversion.
📦 What You’ll Receive
✅ Fully reworked standalone harness ready for installation
✅ Integrated fuse and relay system
✅ OBD2 diagnostic provision
✅ Client plug for simplified startup and vehicle-side connection
✅ Video demonstration of the completed harness in operation
✅ Shared folder containing:
- installation notes
- client plug information
- invoice
- shipping / return details
🎥 Example: 1UZ VVT-i Manual Test Run Video – YouTube
We build each harness individually based on the condition of the original loom and the exact needs of the project.
The goal is not simply to make the engine run, but to provide a clean, reliable, professionally rebuilt standalone system that is properly thought out, well finished, and built to last.
1UZ VVT-i OEM ECU Reliability
1UZ-FE VVT-i OEM ECU Reliability
The 1UZ-FE VVT-i ECU is a reliable and cost-effective engine control unit that rarely requires replacement. When issues do arise, they are typically caused by physical damage or water exposure, rather than internal failures like those found in older non-VVT ECUs.
💰 Cost of Replacement:
- Used ECUs can be found as low as $50 from junkyards
- Online sources such as eBay often list them for around $70, often with free delivery
Understanding the Immobilizer System
Virtually all 1UZ-FE VVT-i ECUs come with an immobilizer, which must be addressed before the ECU can function properly in a swap. You have two options:
- Immobilizer Bypass ($140) – We remove the immobilizer, allowing the engine to run in any vehicle without security restrictions.
- Keep the Immobilizer Functional – If your setup includes the original key, transponder, and immobilizer system, we can wire it in accordingly. additional cost will apply
ECU Limitations & Handling Diagnostic Trouble Codes (DTCs)
🔹 Read-Only Memory (ROM): The 1UZ-FE VVT-i ECUs cannot be flashed or reprogrammed, meaning any DTCs related to missing components (e.g., automatic transmission) will remain unless addressed through hardware modifications.
🔹 How to Handle Transmission DTCs in Manual Swaps:
- Option 1: Simply ignore the automatic transmission DTCs. These do not affect engine performance.
- Option 2: Use a transmission emulator, which tricks the ECU into thinking the transmission is still present. However, this may also introduce EVAP and secondary O2 sensor error codes, which would need to be ignored.
Our recommendation is to disregard transmission-related DTCs when doing a manual swap, as they do not impact drivability or engine performance. This approach provides the smoothest and most hassle-free integration for your 1UZ-FE VVT-i swap.
Additional Information
The Toyota 1UZ-FE 4.0L Engine: Specifications and Reliability
The 1UZ-FE, the first in the UZ engine series, was a 4.0-liter V8 gasoline engine featured in Toyota and Lexus luxury and sports cars from 1989 to 2002, before being replaced by the 3UZ-FE engine. It succeeded Toyota's older V family engines, which were used from the 1960s through the 1990s. The 1UZ-FE engine is characterized by an aluminum cylinder block with thin cast-iron cylinder liners and a 90-degree angle between the cylinder banks, offset by 21 mm. It features six main bearings and a forged steel crankshaft with eight counterweights. To minimize rotational mass, it includes lightweight forged steel connecting rods, aluminum pistons, and induction-hardened connecting rod pins. In late 1994, the 1UZ-FE received updates such as a lighter crankshaft, connecting rods, shorter piston pins, and redesigned pistons. Its quiet and smooth operation is largely due to liquid-filled compound engine mounts. In 1997, it was further refined with a more rigid cylinder block to enhance quietness.
The 1UZ engine is engineered more like a racing powerhouse than your typical road car engine. It's equipped with an eight counterweight crankshaft, and its components are designed to be lightweight. The bore and stroke dimensions are almost perfectly square, which is quite unique. But the standout feature has to be the DOHC 32-valve aluminum cylinder heads. This is a stark contrast to the older V8 engines, which usually had a single camshaft in the cylinder block and OHV heads with just two valves per cylinder. The 1UZ-FE, on the other hand, features two camshafts per head—one for intake and one for exhaust, with four valves for each cylinder. The intake camshafts are belt-driven, while the exhaust camshafts are gear-driven by the intake ones. Instead of using hydraulic lifters, this engine uses solid aluminum alloy valve lifters and steel outer shim type valve adjusters. Initially, the valve stem diameter was 6.0 mm for both intake and exhaust valves, with the intake valves being 33.5 mm in diameter and the exhaust valves 28.0 mm. But in a late 1997 update, the valve diameters were increased to 34.5 mm for intake and 29.0 mm for exhaust, and the stem diameter was reduced to 5.5 mm.
The initial design of the 1UZ-FE engine showcased a simple ignition system, comprising two distributors along with two ignition coils. This engine initially employed multi-port fuel injection (MFI) technology until 1994, which was then upgraded to sequential multiport fuel injection (SFI). The Non-VVT-i variant came with a mechanical throttle body and was fitted with an aluminum intake manifold. Additionally, it featured an Exhaust Gas Recirculation (EGR) system, which was responsible for redirecting a portion of the exhaust gases back into the combustion chambers. These gases were cooled by the engine's coolant system located at the rear before re-entry. However, the EGR system was phased out in 1997. As for the exhaust configuration, it boasted stainless steel headers and monolithic-type three-way catalytic converters.
Engine Specifications:
- Manufacturer: Tahara plant
- Production Years: 1989-2002
- Cylinder Block Material: Aluminum
- Cylinder Head Material: Aluminum
- Fuel Type: Gasoline
- Fuel System: Fuel injection
- Configuration: V
- Number of Cylinders: 8
- Valves Per Cylinder: 4
- Valvetrain Layout: DOHC
- Bore: 87.5 mm (3.44 in)
- Stroke: 82.5 mm (3.25 in)
- Displacement: 3,968 cc (242.1 cu in)
- Engine Type: Four-stroke, naturally aspirated
- Compression Ratios:
- 10.0:1
- 10.4:1 (since late 1994)
- 10.5:1 (since 1997 for VVT-i engines)
- Power Output:
- 251-261 hp (191-195 kW) at 5,400 rpm (non VVT-i)
- 290-300 hp (216-224 kW) at 5,900-6,000 rpm (with VVT-i)
- Torque:
- 260-269 lb-ft (353-365 Nm) at 4,400 rpm (non VVT-i)
- 300-310 lb-ft (407-420 Nm) at 4,000-4,100 rpm (with VVT-i)
- Engine Weight: 364 lbs (165 kg)
- Firing Order: 1-8-4-3-6-5-7-2
- Engine Oil Weight: 5W-30
- Engine Oil Capacity:
- 5.0 liters (0.3 for oil filter) for 1989-1994 models
- 5.1 liters (0.3 for oil filter) for 1994+ models
- Oil Change Interval:
- 6,000 miles (10,000 km) or 12 months for 1989-1994 models
- 9,000 miles (15,000 km) or 12 months for 1994+ models
- Applications: Lexus GS 400, Lexus LS 400, Lexus SC 400, Toyota Aristo, Toyota Celsior, Toyota Crown, Toyota Soarer
