Toyota Lexus V8 Standalone Wiring & ECU Programming

Lexus V8 Engines LLC

Wiring and ECU work for Toyota and Lexus V8 swaps

We build and rebuild harnesses, prepare OEM ECUs and help clients connect the finished system to their vehicle.

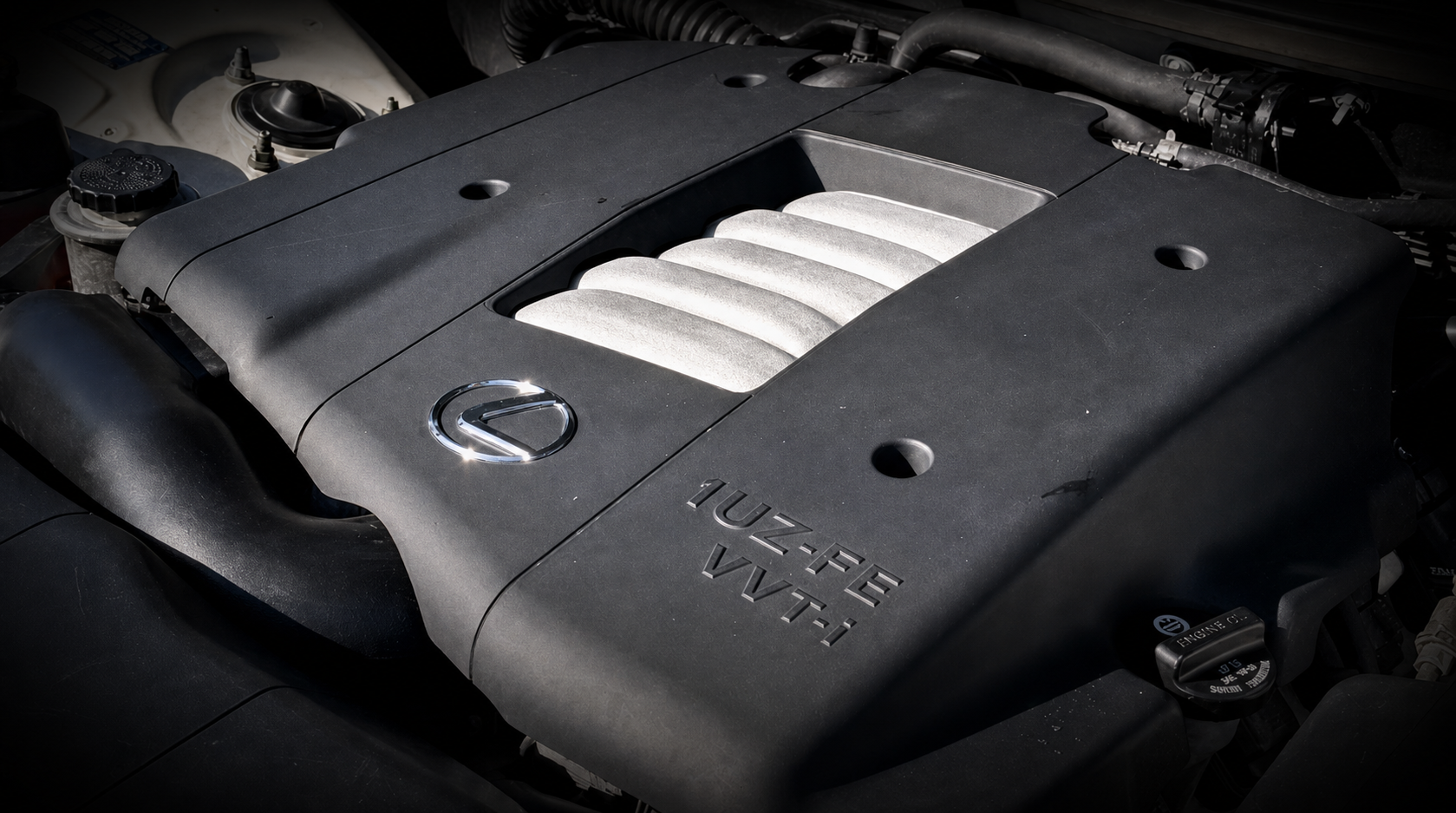

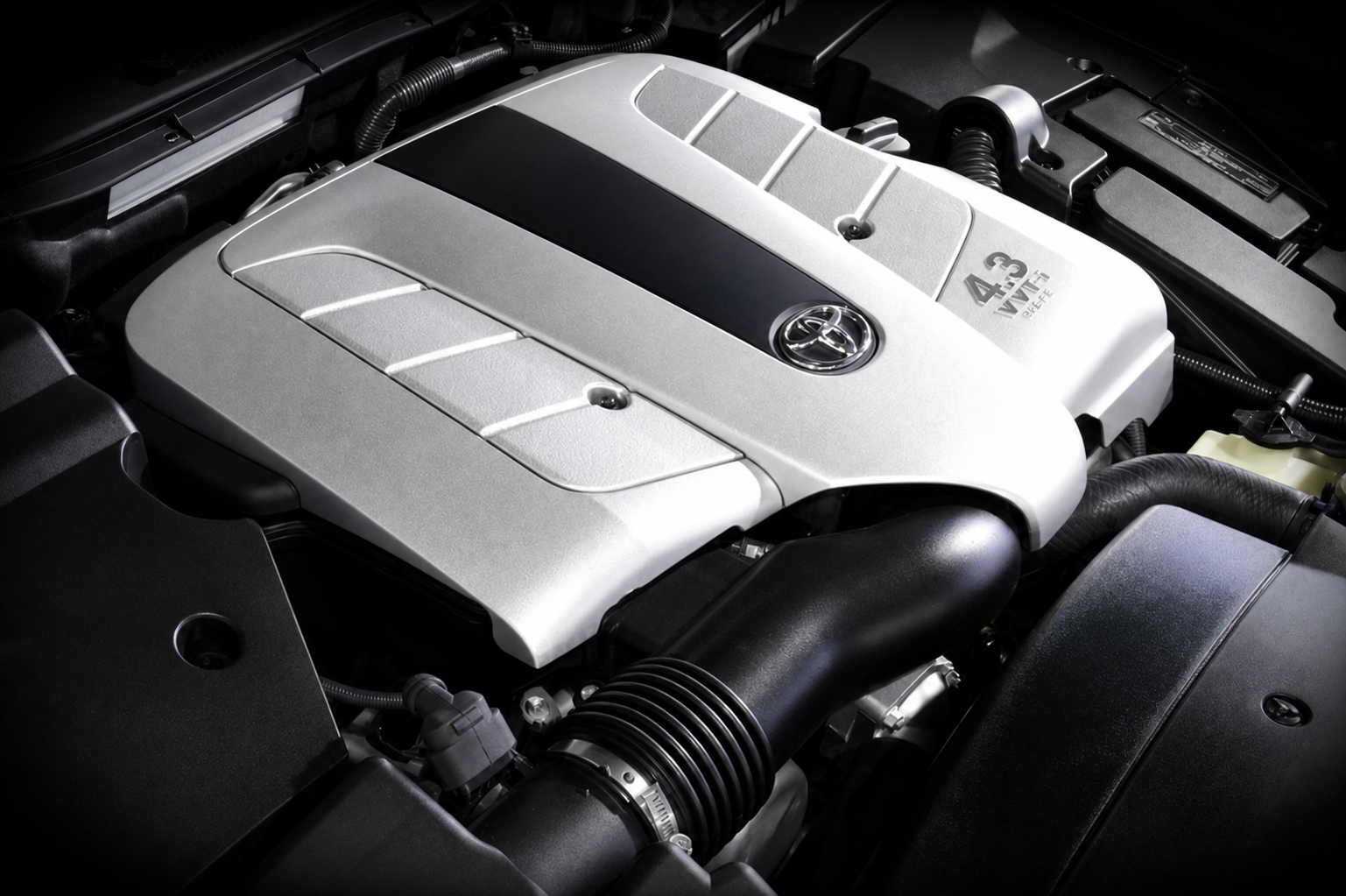

For supported 1UZ-FE VVT-i, 2UZ-FE and 3UZ-FE installations, with manual or matching factory automatic transmissions.

The installed 3UZ-FE engine in Tim’s 1999 Toyota Hilux
A 3UZ-FE in Tim’s 1999 Hilux. The original diesel truck was rebuilt around the Lexus V8. See the build photographs.

In the vehicle

Real photographs from the published build stories, showing different ways to use the 3UZ-FE.

The 3UZ-FE engine installed in Tim’s 2003 Lexus IS200
Photograph from Tim’s published IS200 build.

Tim’s 2003 IS200 · 3UZ-FE

The 3UZ-FE installed in the IS200 engine bay. The project record explains the conversion and includes this original photograph.

Read the IS200 build story
James Noonan’s turquoise and rust-patina 1966 Toyota Stout with its 3UZ conversion
James Noonan’s customer-built Toyota Stout.

James Noonan’s 1966 Stout · supercharged 3UZ

A customer-built restomod with an M112-supercharged 3UZ. The published record lists Lexus V8 harness, ECU and pedal supply.

See James’s Stout build

The harness work, up close

All workshop recordings

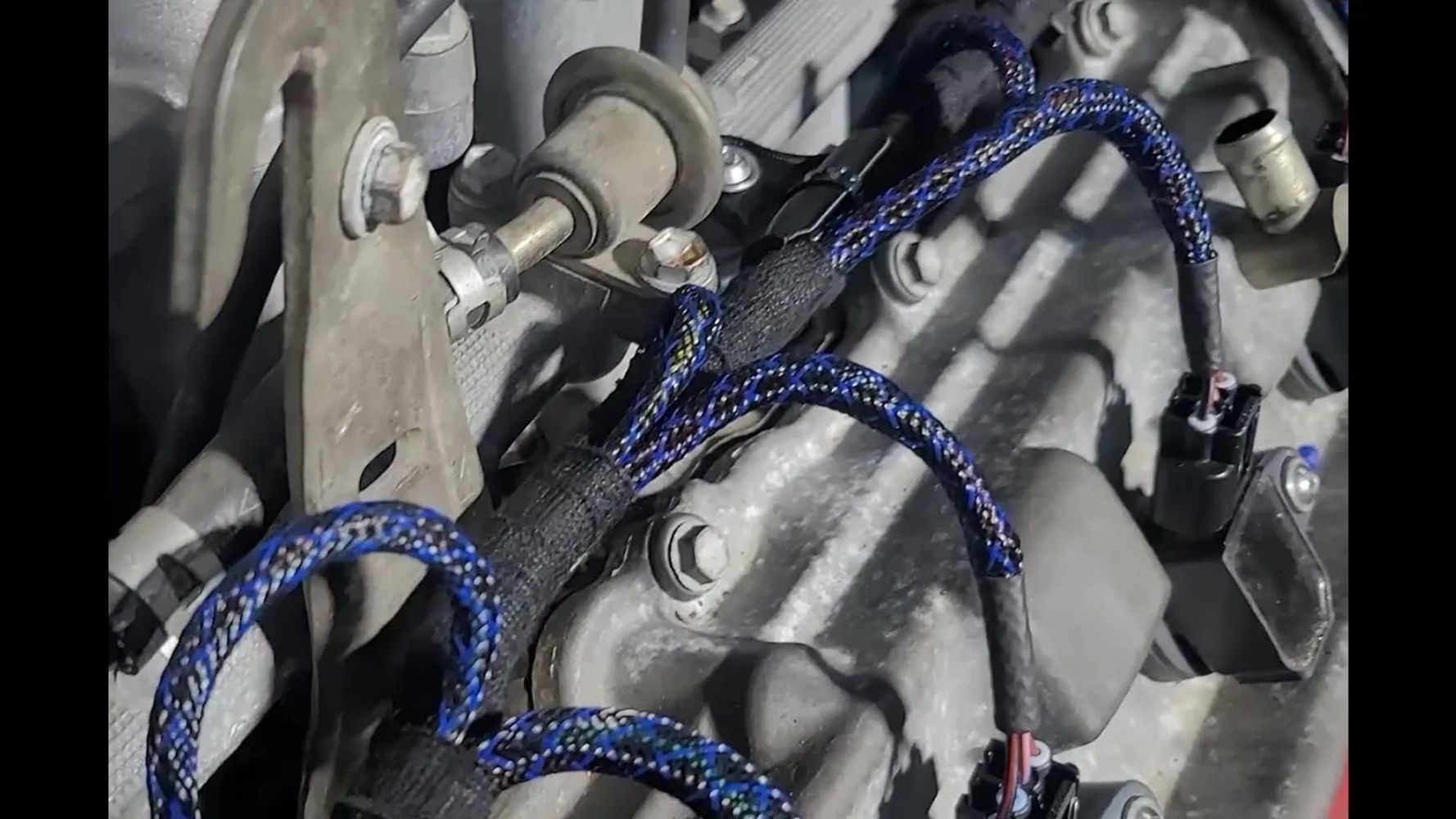

Engine branches, renewed connectors and protective sleeving from our 1986 Hilux 3UZ-FE walkthrough.

Harness branches routed along the 3UZ-FE test engine, with renewed connectors and woven protective sleeving.
Harness-routing detail from our 1986 Hilux 3UZ-FE walkthrough. The full recording shows the connections and workshop checks.

Harness builds and rebuilds

New wiring for supported manual setups, or inspection, repair and reconfiguration of your original harness.

Compare harness options

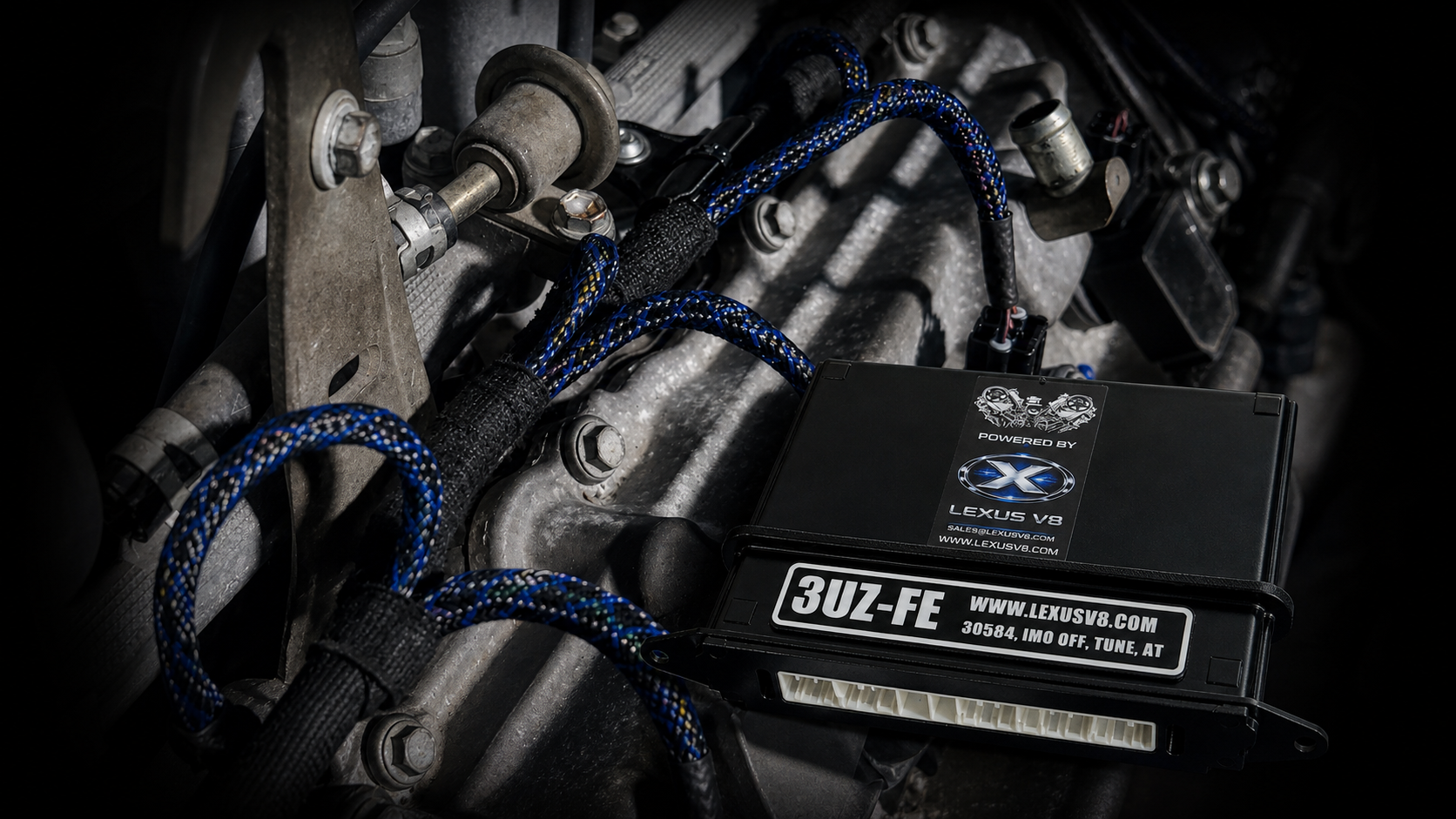

ECU preparation

Supported immobilizer and application configuration, manual-conversion preparation and calibration work.

ECU service details

Installation parts and references

Connector references, intake housings, client-plug pinouts and test procedures for the installation.

Browse the Technical Library

Recorded workshop jobs

These records show the engine-management package and the checks made on the stand.

How we support your build

  1. Work through the setup

    Send donor, vehicle, ECU and gearbox details with photos. We check the parts and functions you want to keep.

  2. Agree the work

    We confirm the scope, estimate and parts to send. The client form keeps the agreed details with the job.

  3. Check and document it

    We check connections and label vehicle interfaces. Where the supplied setup allows, we record an engine-run and diagnostic check.

  4. Help with installation

    Use the matching client-plug guide. If there is a problem, send wiring details, symptoms, fault codes and a saved log.

A stand test checks the supplied engine-management package. Vehicle wiring, cooling, fuel supply and mechanical condition still need checking in the completed installation.
