Sequoia 12-Pin 4-Speed Transmission Client Plug Guide

Automatic Transmission Technical Reference

Sequoia-based 4-speed automatic standalone transmission interface

Build-Specific Confirmation

Always confirm connector orientation, terminal location, wire color, circuit function, signal direction, polarity, fuse protection, and build-specific instructions before final installation. Do not wire by color alone.

Connector Visuals

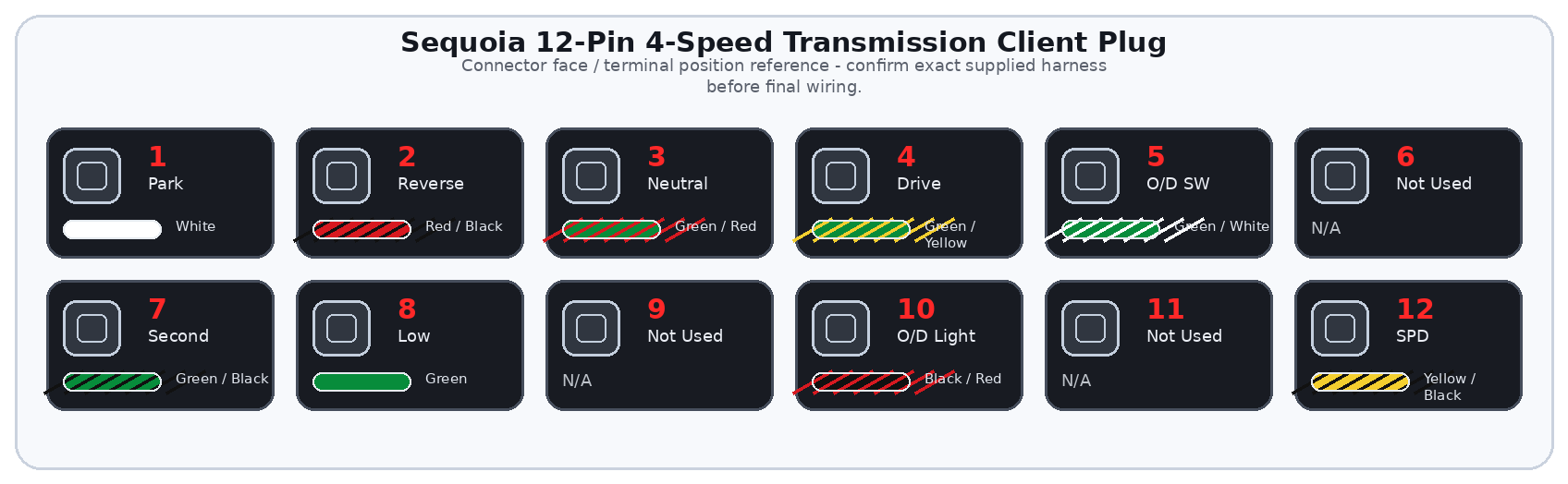

Sequoia 12-Pin 4-Speed Transmission Client Plug connector diagram
Sequoia 12-Pin 4-Speed Transmission Client Plug

Overview

The 12-pin 4-speed transmission client plug provides vehicle-side connections for shifter range information, overdrive control, overdrive indicator operation, and vehicle speed signal integration.

Correct range and speed wiring are required for normal shifting, torque converter lockup, diagnostic logic, and safe operation.

Important

This guide covers the vehicle-side 12-pin 4-speed automatic transmission client plug for a Sequoia-based automatic transmission standalone system. The standalone harness is an engine and transmission control system, not a full chassis or body harness.

General Information Notice

This document is provided for general information and customer reference only. Final wiring must be verified against the exact harness supplied and the vehicle-side circuit being connected.

Quick Start: Critical Connections

Function GroupCircuit / PinWire(s)Customer Connection
Range Position SignalsP / R / N / D / 2 / LPins 1,2,3,4,7,8Connect to shifter or transmission range switch circuits as configured.
Overdrive SwitchO/D SwitchPin 5Connect to overdrive cancel switch circuit as configured.
Overdrive LightO/D OFF LightPin 10Dash O/D OFF indicator circuit. Confirm output polarity.
Vehicle SpeedVSS / SPDPin 12Provide compatible speed signal to ECU/transmission logic.

Wire Color / Tracer Reference

Stripe/tracer colors are shown as diagonal bands on the wire. The first color is the base wire color. The second color is the stripe/tracer color.

WhiteWhite solid wire
Red / BlackRed base wire with Black tracer
Green / RedGreen base wire with Red tracer
Green / YellowGreen base wire with Yellow tracer
Green / WhiteGreen base wire with White tracer
Green / BlackGreen base wire with Black tracer
GreenGreen solid wire
Black / RedBlack base wire with Red tracer
Yellow / BlackYellow base wire with Black tracer

Full Pinout Reference

PinWire VisualCircuit / FunctionSignal TypeNotes
Pin 1WhiteParkRange selector signalPark position signal for ECU/shifter logic.
Pin 2Red / BlackReverseRange selector signalReverse position signal. May relate to reverse lights or camera integration depending on vehicle wiring.
Pin 3Green / RedNeutralRange selector signalNeutral position signal. Confirm neutral safety/start strategy.
Pin 4Green / YellowDriveRange selector signalDrive position signal for normal automatic operation.
Pin 5Green / WhiteOverdrive SwitchO/D cancel inputDriver overdrive ON/OFF or overdrive cancel switch circuit. Confirm switch type and polarity.
Pin 6N/ANot UsedN/ANo customer connection.
Pin 7Green / BlackSecond / 2Range selector signalSecond range selector signal.
Pin 8GreenLow / LRange selector signalLow/first gear selector position signal.
Pin 9N/ANot UsedN/ANo customer connection.
Pin 10Black / RedOverdrive LightIndicator outputDash O/D OFF indicator circuit. Confirm output polarity.
Pin 11N/ANot UsedN/ANo customer connection.
Pin 12Yellow / BlackVehicle SpeedSpeed signalVehicle speed signal used by ECU/transmission logic.

Detailed Circuit Notes

Range signals

  • Verify each range signal at the shifter before driving.
  • Do not bypass neutral safety unless a safe replacement circuit is installed.
  • Reverse lamps normally require a fused chassis-side circuit.

Overdrive

  • Confirm whether the overdrive switch is momentary or latching.
  • Confirm whether the ECU expects ground, +12V, or switched signal.
  • Do not power the O/D OFF light from the switch input unless designed for it.

Vehicle speed

  • Confirm speed source, pulse rate, and signal type.
  • Missing speed signal can cause no lockup, shift complaints, or DTCs.

First Test Checklist

ItemCheck
PRND2LAll range signals match shifter positions.
O/D SwitchInput changes correctly when overdrive cancel is used.
O/D LightDash indicator works with correct polarity.
SPDSpeed signal is present during movement.

Troubleshooting Quick Reference

SymptomItems to Check
No shift or wrong gear indicationCheck range switch connections and polarity.
O/D OFF light wrongCheck Pin 10 polarity and lamp feed.
Speed-related DTCCheck Pin 12 speed source and signal compatibility.
