Lexus V8 Engines LLC offers OEM Toyota/Lexus V8 engine harness rebuild services where the original factory harness is stripped down, cleaned, repaired, rebuilt, and reconfigured into a standalone-style system for engine swaps.

This service is different from building a completely new harness. With an OEM rebuild, we use the original Toyota/Lexus engine harness as the foundation, then completely go through it and modify it so the engine and ECU can operate outside of the original donor vehicle.

This is a very good option when the customer already has the original engine harness and wants to retain the factory Toyota/Lexus ECU system, factory sensors, factory throttle system, and OEM reliability.

Start the harness formAsk what fits your project

What is included

What an OEM harness rebuild includes

With an OEM harness rebuild, we do not simply shorten a few wires and tape the harness back together.

The harness goes through a very intensive rebuild process. All original wrapping, tape, conduit, and outer coverings are removed. The harness is then thoroughly washed and cleaned so we can properly inspect the wiring, connectors, branch points, and any areas that may have been damaged by age, heat, oil, or previous repairs.

All engine-side connectors are removed from the harness. The terminals and seals are removed and replaced with new fresh terminals and seals. Connectors that are still in good condition can be reused, but any connector that looks suspect, brittle, damaged, heat affected, cracked, deteriorated, or unreliable is replaced with a new connector.

This is not a quick cosmetic rewrap. The harness is fully inspected and rebuilt so it becomes a proper part to install onto the engine.

Depending on the condition and application, this can include:

  • Removal of old loom, tape, conduit, and coverings
  • Intensive washing and cleaning process
  • Inspection of the full harness
  • Removal of engine-side connectors
  • Replacement of engine-side terminals and seals
  • Replacement of damaged or deteriorated connectors
  • Repair or replacement of damaged wiring
  • Reconfiguration of the harness to standalone operation
  • Removal or isolation of circuits no longer required
  • Addition of labeled client plug connections
  • OBD2 diagnostic port wiring
  • Fuel pump control wiring
  • Ignition and start signal wiring
  • Gauge and dash output wiring
  • ECU programming where supported
  • Final testing before shipping where possible

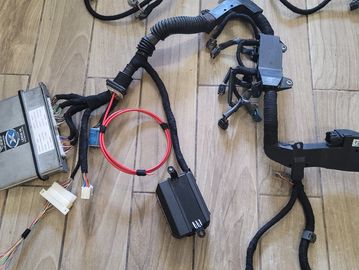

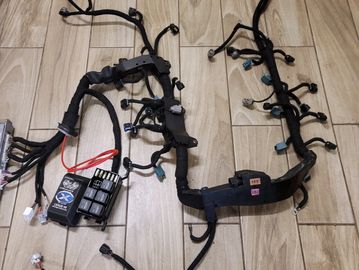

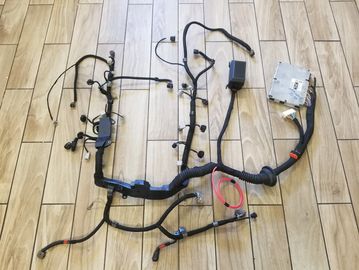

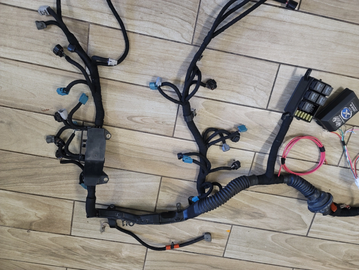

After the wiring has been repaired and reconfigured, the harness branches and outlets are finished with woven tubing. The harness can also be stiffened with a stainless steel skeleton where needed so the harness holds its shape and routes cleanly around the engine.

Brackets are installed where required so the harness fits the engine properly. The goal is for the harness to fit the engine like a glove instead of being a loose, floppy harness that can rub against brackets, engine parts, exhaust heat, or moving components.

A properly rebuilt harness should feel like a finished engine component, not an afterthought. It should install cleanly, route neatly, and reduce the chance of future wiring problems caused by rubbing, movement, heat, or poor routing.

Why rebuild?

Why rebuild the OEM harness?

Many Toyota/Lexus V8 harnesses are now old enough that the insulation, connectors, seals, and terminals may be brittle, corroded, heat damaged, oil soaked, or previously modified.

Even if an engine runs before removal, the harness can start falling apart once it is moved, unplugged, or installed into a new vehicle.

An OEM harness rebuild allows the original harness to be brought back to life while still retaining the benefits of the Toyota/Lexus factory ECU system.

The finished harness is cleaner, more reliable, easier to install, and much easier to diagnose than a used, brittle, unmodified donor harness.

Vehicle-side wiring

Typical vehicle-side connections

The finished standalone-style harness is designed to keep the vehicle-side wiring as simple as possible.

Typical connections may include:

Ignition powerStart signalFuel pump control / FCOBD2 diagnostic portCheck engine lightTach outputCharge lightOil warningCoolant tempA/C requestFan triggerReverse lightsBrake switchCruise controlTransmission wiringTransfer case wiring

This is not a universal plug-and-play chassis harness. The installer still needs to connect the labeled vehicle-side wires into the recipient vehicle correctly.

1UZ-FE VVTi

1UZ-FE VVTi OEM harness rebuild

The 1UZ-FE VVTi is a very good engine, but it has some important limitations compared with later 2UZ and 3UZ systems.

The 1UZ VVTi can be rebuilt into a standalone-style system using the original OEM harness and ECU, but customers need to understand the ECU limitations before choosing this platform.

1UZ VVTi Manual Configuration

A 1UZ VVTi can be wired to run in a manual swap application. The OEM harness can be rebuilt and reconfigured into a standalone-style engine harness.

Typical manual swap connections include:

  • Ignition power
  • Start signal
  • Fuel pump control
  • OBD2 diagnostic port
  • Tach output
  • Check engine light
  • Charge light
  • Oil light
  • Coolant temperature signal
  • A/C request if required

Pros

  • Strong, smooth, reliable VVTi engine
  • Good power and response for many swaps
  • Factory ECU runs the engine very well when wired correctly
  • Good option where the customer already has a complete donor harness and ECU
  • OEM reliability when the wiring is rebuilt properly

Cons

  • The 1UZ VVTi ECU is not programmable in the same way as later 2UZ and 3UZ ECUs
  • Transmission-related codes cannot simply be flashed out like on later platforms
  • Manual conversions may still have automatic transmission-related fault codes depending on ECU and configuration
  • Immobilizer removal is normally possible, but full calibration editing is limited
  • Not as flexible as 2UZ/3UZ for DTC deletion, manual setup, or performance tuning

On 1UZ VVTi systems, we can wire the engine to run properly in a manual application, but customers need to understand that the ECU itself has limitations. This is not the same as a 3UZ or later 2UZ ECU where we can usually go in and configure the ECU more completely for the swap.

1UZ VVTi Automatic Configuration

A 1UZ VVTi automatic setup can be supported when the customer is retaining the correct matching Toyota/Lexus automatic transmission and ECU system.

This is normally more straightforward than trying to convert the ECU to a manual configuration because the ECU is still seeing the automatic transmission system it was designed to control.

Pros

  • Keeps the original engine/transmission control strategy
  • Good drivability when the matching transmission is retained
  • Factory ECU can continue to control the engine and automatic transmission as intended
  • Good option for customers wanting an OEM-style automatic swap

Cons

  • Requires the correct matching transmission, ECU, and wiring strategy
  • More wiring is required than a manual engine-only setup
  • Transmission wiring, park/neutral input, gear position, and speed signals must be correct
  • ECU programming options are still limited compared with later 2UZ/3UZ

2UZ-FE non-VVTi

2UZ-FE non-VVTi OEM harness rebuild

The non-VVTi 2UZ is one of the best engines for truck, 4x4, Land Cruiser, Hilux, Tacoma, 4Runner, and off-road applications. It has excellent torque and is well suited to heavier vehicles.

There are several different non-VVTi 2UZ wiring and throttle system versions, so the exact setup must be identified before building the harness.

Common Non-VVTi 2UZ Variants

Early 2UZ systems use electronic throttle control but still have a physical cable going to the throttle body. The accelerator position sensor is built into the throttle body assembly.

Later non-VVTi systems use a full electronic accelerator pedal where the pedal contains the accelerator position sensor.

There are also ECU and transmission differences between early Land Cruiser, Tundra, Sequoia, and later 5-speed applications.

The important part is that the throttle body, ECU, accelerator pedal or accelerator position system, and harness strategy must all match.

2UZ Non-VVTi Manual Configuration

A non-VVTi 2UZ can be set up very well for manual transmission swaps. Common manual transmissions include R150F, R151F, H-series, R-series, and other adapter-based manual setups.

In a manual configuration, the ECU runs the engine only. The manual transmission is mechanically separate from the ECU.

Typical manual swap wiring includes:

  • Ignition power
  • Start signal
  • Fuel pump control
  • OBD2 diagnostic port
  • Check engine light
  • Tach output
  • Charge light
  • Oil light
  • Coolant temperature signal
  • A/C request if required
  • Fan control if required
  • Reverse light wiring if requested

ECU Notes

Some early 2UZ ECUs, especially certain Land Cruiser and first-generation Tundra ECUs, are not flashable in the way we need for some swap configurations. When required, we can replace the ECU with a suitable programmable Sequoia ECU and wire/program the system to suit.

The important thing is not the story behind the ECU. The important thing is that the customer receives a working system.

Pros

  • Excellent torque for trucks and 4x4 vehicles
  • Very reliable engine platform
  • Good for manual swaps when ECU and throttle strategy are matched correctly
  • Can be set up as a clean standalone engine management system
  • Sequoia ECU options allow better programming flexibility where needed
  • Excellent choice for Hilux, Tacoma, 4Runner, Land Cruiser, and off-road builds

Cons

  • Several different throttle/ECU versions exist, so parts must be matched correctly
  • Early ECUs may not be flashable
  • Some donor systems can create confusion if throttle body, ECU, and pedal are mixed incorrectly
  • Harness age and condition can vary heavily

2UZ Non-VVTi Automatic Configuration

The non-VVTi 2UZ can also be rebuilt into a standalone-style automatic harness when the correct Toyota/Lexus automatic transmission is retained.

Depending on year and donor, this may involve 4-speed or 5-speed automatic control.

Typical automatic configuration wiring may include:

  • Engine wiring
  • Transmission wiring
  • Park/neutral input
  • Reverse signal
  • Gear position wiring
  • OBD2 diagnostic port
  • Fuel pump control
  • Check engine light
  • Tach output
  • Charge light
  • Oil light
  • Coolant temperature
  • Transfer case wiring if applicable

Pros

  • Good OEM drivability when engine, ECU, and transmission are matched
  • Excellent for Land Cruiser, Tacoma, Tundra, 4Runner, Hilux, and other truck-style swaps
  • Can retain factory-style transmission operation when wired correctly
  • Strong low-end torque for heavier vehicles

Cons

  • More complex than manual engine-only wiring
  • Transmission and ECU must match correctly
  • Transfer case wiring can vary depending on actuator/manual transfer case setup
  • Some early ECUs have limited programming options

2UZ-FE VVTi

2UZ-FE VVTi OEM harness rebuild

The 2UZ VVTi is a very strong platform for swaps, especially in trucks and 4x4 vehicles. It has improved engine control, better drivability, and good ECU programming options when the correct ECU is used.

This is commonly found in later Land Cruiser, LX470, GX470, Tundra, Sequoia, and other Toyota/Lexus truck applications.

2UZ VVTi Manual Configuration

A 2UZ VVTi can be used in a manual transmission swap, but the ECU and wiring need to be set up correctly.

In a manual setup, the ECU runs the engine only. The manual transmission remains separate.

ECU programming can normally include:

  • Immobilizer removal
  • Automatic transmission code removal
  • Manual application setup
  • Rear O2 / catalyst monitoring removal where applicable
  • EVAP-related code removal where applicable
  • Secondary air injection code removal where applicable
  • Performance / throttle response tune

Typical vehicle-side connections can include:

  • Ignition power
  • Start signal
  • Fuel pump control
  • OBD2 diagnostic port
  • Check engine light
  • Tach output
  • Charge light
  • Oil light
  • Coolant temperature
  • A/C request if required
  • Fan control if required

Pros

  • Excellent truck engine
  • Very good torque and drivability
  • More programmable than 1UZ VVTi
  • Good option for manual Land Cruiser, Hilux, Tacoma, and 4Runner swaps
  • Can be set up cleanly as a standalone-style engine harness
  • Strong choice where customers want modern Toyota/Lexus truck engine control

Cons

  • More complex than non-VVTi systems
  • Electronic throttle and accelerator pedal must be matched correctly
  • Secondary air injection system may need to be handled properly
  • Some applications require careful DTC setup to avoid unwanted codes
  • Harness condition and donor completeness matter

2UZ VVTi Automatic Configuration

The 2UZ VVTi with automatic transmission is one of the better options for customers wanting an OEM-style truck drivetrain swap.

This is especially useful when retaining the matching Toyota/Lexus automatic transmission and transfer case system.

Automatic configurations may include:

  • Engine wiring
  • Automatic transmission wiring
  • Accelerator pedal wiring
  • MAF wiring
  • OBD2 diagnostic port
  • Fuel pump control
  • Check engine light
  • Tach output
  • Charge light
  • Oil light
  • Coolant temperature
  • Transfer case wiring if required
  • 4WD / range / actuator wiring where required
  • A/C request
  • Fan control strategy where required

Pros

  • Excellent drivability when matched with the correct automatic transmission
  • Strong option for Land Cruiser, Hilux, Tacoma, 4Runner, and off-road builds
  • ECU programming can remove unwanted systems
  • Can retain proper OEM engine/transmission control
  • Very good for customers wanting an automatic 4x4 swap

Cons

  • More complex harness build
  • Transfer case systems vary and must be identified correctly
  • Automatic transmission and ECU must be compatible
  • Air injection, EVAP, rear O2, catalyst monitoring, and other systems may need to be programmed out depending on the swap
  • More donor parts are required than a simple manual engine-only setup

3UZ-FE

3UZ-FE OEM harness rebuild

The 3UZ-FE is one of our favorite platforms for swaps. It is smooth, compact, all-aluminum, responsive, and the ECU can normally be programmed to suit many applications.

The 3UZ is very popular in drift cars, Toyota pickups, 4Runners, Hilux, Altezzas, classic cars, Mercedes swaps, and other custom builds.

3UZ Manual Configuration

The 3UZ works very well in manual transmission applications.

Common manual transmissions include:

  • R150F
  • R154
  • CD009
  • TL70 / FR-S / BRZ 6-speed
  • W-series Toyota transmissions
  • Tremec-style conversions
  • Other adapter-based manual setups

In manual applications, the ECU runs the engine only. The transmission is mechanically separate.

ECU programming can include:

  • Immobilizer removal
  • Manual transmission setup
  • Automatic transmission code removal
  • Rear O2 / catalyst monitoring removal
  • EVAP code removal where applicable
  • Performance / throttle response tune

Typical wiring includes:

  • Ignition power
  • Start signal
  • Fuel pump control
  • OBD2 diagnostic port
  • Check engine light
  • Tach output
  • Charge light
  • Oil light
  • Coolant temperature
  • A/C request if required
  • Fan trigger wiring if required
  • Reverse light wiring
  • Clutch switch if required
  • Cruise control where applicable

Pros

  • Excellent engine for swaps
  • Good ECU programming support
  • Smooth and responsive
  • Works very well with manual transmissions
  • Good performance/throttle response tuning options
  • Clean standalone harness setup
  • Great option for cars and lighter trucks
  • Very good platform for customers wanting OEM ECU reliability with a swap-friendly setup

Cons

  • Drive-by-wire system must be wired correctly
  • Accelerator pedal and throttle body must match ECU strategy
  • Less low-end torque than 2UZ in heavier 4x4 vehicles
  • Factory automatic systems can be more complex if retained

3UZ Automatic Configuration

The 3UZ can also be used with factory Toyota/Lexus automatic transmissions when the correct ECU, transmission, and wiring are retained.

Automatic configurations are more involved because the ECU may control both the engine and transmission.

Automatic harness rebuilds may include:

  • Engine wiring
  • Automatic transmission wiring
  • Park/neutral input
  • Reverse output
  • Gear position wiring
  • Shift input wiring where applicable
  • OBD2 diagnostic port
  • Fuel pump control
  • Check engine light
  • Tach output
  • Charge light
  • Oil light
  • Coolant temperature
  • Cruise control where applicable
  • A/C request
  • Fan wiring strategy where required

Pros

  • Factory-style drivability when matched correctly
  • Smooth automatic operation
  • Good for luxury, cruiser, and street swap builds
  • Can retain cruise control where applicable
  • Can be programmed for immobilizer removal and unwanted code removal

Cons

  • More complex than manual setup
  • Transmission, ECU, shifter logic, and wiring must be compatible
  • Not all Toyota/Lexus automatic transmissions can simply be mixed and matched
  • Some factory automatic functions require extra wiring and correct signals

Manual vs automatic

General comparison

Manual Builds

Manual builds are usually simpler from the wiring side because the ECU is only responsible for running the engine.

Best for

  • Off-road vehicles
  • Drift cars
  • Manual Toyota pickup swaps
  • Hilux / Tacoma / 4Runner builds
  • Customers who want simpler wiring
  • Customers using adapter-based manual transmissions

Advantages

  • Cleaner wiring
  • Fewer transmission control requirements
  • Easier vehicle integration
  • More flexibility with transmission choice

Possible downsides

  • Some ECUs need programming to remove automatic transmission codes
  • Some platforms are more programmable than others
  • Reverse lights, clutch switches, and neutral inputs may need separate planning

Automatic Builds

Automatic builds are more involved but can give excellent OEM-style drivability when the correct parts are used.

Best for

  • Land Cruiser swaps
  • LX470 / Tundra / Sequoia drivetrain swaps
  • Street cruisers
  • 4x4 automatic builds
  • Customers wanting factory-style automatic operation

Advantages

  • Factory ECU can control engine and transmission together
  • Smooth drivability
  • Good for heavy vehicles
  • Can retain OEM-style transmission behavior

Possible downsides

  • More complex wiring
  • Requires correct matching transmission and ECU
  • Transfer case wiring may add complexity
  • More donor parts may be required

Platform summary

Quick platform summary

1UZ VVTi

Good engine, but limited ECU programming.

Best for customers who already have a complete 1UZ VVTi system and understand the ECU limitations.

Manual: possible, but automatic codes may remain.

Automatic: good if the correct matching automatic system is retained.

Main limitation: ECU is not programmable like later 2UZ/3UZ.

2UZ Non-VVTi

Excellent truck engine with several different wiring/throttle/ECU versions.

Manual: very good when ECU and throttle strategy are matched correctly.

Automatic: very good when the correct transmission and ECU are retained.

Main limitation: early ECU programmability varies, but Sequoia ECU options can solve many issues.

2UZ VVTi

Excellent truck and 4x4 swap engine with better programming options.

Manual: very good with proper ECU setup.

Automatic: excellent when using the correct matching transmission/transfer case system.

Main consideration: air injection, EVAP, rear O2, catalyst monitoring, and transfer case wiring may need to be addressed.

3UZ

Excellent car and light truck swap engine with strong ECU programming support.

Manual: very good and very popular.

Automatic: good when the correct matching transmission and ECU are retained.

Main consideration: drive-by-wire pedal/throttle and ECU matching must be correct.

What to send

What customers should send

For an OEM harness rebuild into standalone, customers should normally send:

  • Main engine harness
  • Sub-harness / lower starter and knock sensor harness where applicable
  • ECU
  • Completed client form
  • Any related transmission wiring if retaining automatic transmission
  • Any transfer case wiring or actuator wiring if required
  • Notes about the vehicle, transmission, and intended use

The client form is important because it tells us exactly what the harness is being built for, what transmission is being used, what systems are being retained, and what options are required.

Open client formsContact the workshop

Testing

Testing before shipping

Whenever possible, completed systems are test-run before shipping.

This allows us to confirm that the harness and ECU work correctly before the customer installs the system. We provide a video of the system running so the customer can see the harness in operation.

A properly rebuilt OEM harness gives the customer the benefits of the Toyota/Lexus factory ECU system while making the swap wiring much cleaner, simpler, and more reliable.

Final note

A rebuilt OEM harness should be a finished engine component

An OEM harness rebuild into standalone is ideal for customers who want the reliability of the Toyota/Lexus factory ECU system but do not want a brittle, unknown, poorly routed donor harness installed into their project.

The finished harness becomes a properly rebuilt, cleaned, repaired, shaped, protected, and serviceable engine wiring system. It is designed to fit the engine cleanly, route correctly, and reduce future wiring issues.

The goal is simple: a harness that fits the engine properly, works reliably, looks professional, and makes the swap easier to install and diagnose.

Start the harness formBack to products
