Technical Training Module 34

Air Flow Sensors

Air Flow Sensors for intake leaks, MAF/VAF operation, throttle path, idle air, and metered-air diagnosis.

This page is written as a workshop training guide: learn the system, set up the test correctly, prove the circuit, interpret the result, and record the repair.

voltagecurrentgroundsensorignitionair flowshiftbattery

What This Lesson Teaches

Objective 01

Understand what the system is meant to do before testing it.

Objective 02

Identify power, ground, input, output, and load points on the wiring diagram.

Objective 03

Use the correct meter or scope test instead of guessing at components.

Objective 04

Separate a wiring fault from a sensor, actuator, ECU, or mechanical fault.

How The System Works

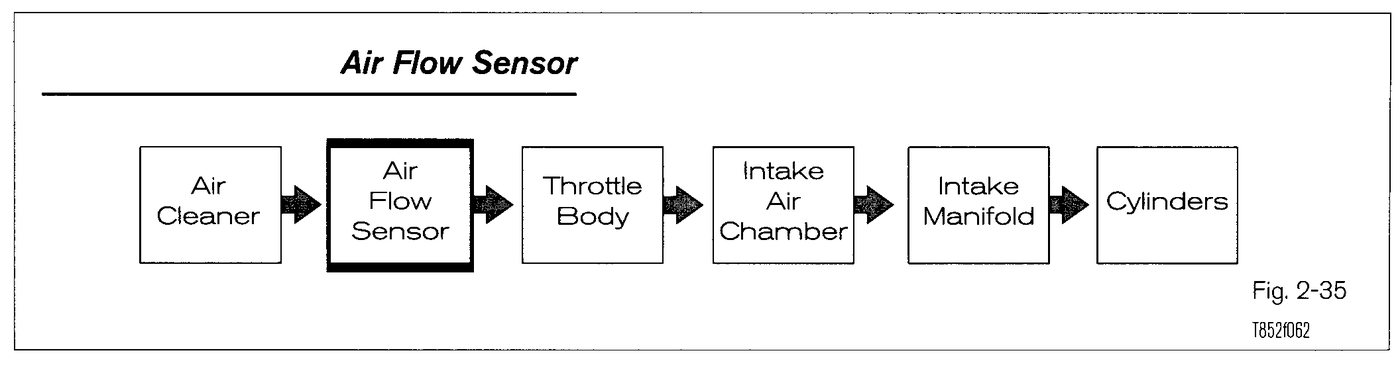

The air induction system must deliver clean, measured air to the engine. The ECU calculates fuel based on air measurement, engine speed, temperature, throttle angle, and feedback correction.

Air leaks after the measuring device are unmetered air. Restrictions before or through the measuring device can make the ECU calculate the wrong fuel amount. Both faults can look like fuel or ignition problems.

Toyota and Lexus systems may use vane air-flow meters, hot-wire MAF sensors, MAP strategies, throttle sensors, idle air control, and temperature compensation depending on engine family.

Tools, Safety, And Setup

Required tools

Digital multimeter with min/max and duty-cycle or frequency capability
Incandescent test light for loaded power/ground checks where safe
Back-probe pins, fused jumper leads, and connector pinout references
Current clamp or low-amp probe for motors, pumps, solenoids, and alternator checks
Oscilloscope or graphing meter for crank, cam, MAF, ignition, and oxygen sensor signals

Safety and setup

Work with the vehicle secure, transmission in park or neutral, wheels chocked, and the ignition state deliberately controlled.
Do not pierce sealed wiring unless there is no better access point. Back-probe from the connector side where possible and reseal anything disturbed.
Use the correct meter range before connecting to a circuit. A meter on the wrong range can damage the meter, the ECU, or the circuit.
Load-test power and ground circuits. An unloaded circuit can show battery voltage and still fail when the component is asked to work.
Disconnect ECUs and sensitive modules before doing resistance checks unless the specific procedure says the circuit can remain connected.

Step By Step Test Procedure

Air leak and restriction check

Inspect the intake duct between the air meter and throttle body for cracks, loose clamps, and collapsed sections.
Check all vacuum hoses, brake booster hose, PCV plumbing, idle-air hoses, and capped ports.
Use smoke testing where practical, especially on swap installations with modified intake routing.
Repair air leaks before chasing fuel trim or idle control faults.

Air-flow signal check

Confirm sensor power, ground, and signal wire identity.
Monitor the signal at idle and while gently increasing airflow.
The signal should change smoothly without dropouts.
If signal is wrong, check for intake leaks, sensor contamination, wiring faults, and incorrect air-meter housing before replacing the ECU.

Idle air and throttle path check

Confirm the throttle plate closes correctly and is not being held open by cable tension or dirt.
Check idle-air passages, idle valve hoses, and bypass plumbing for leaks or restrictions.
Verify throttle-position or idle-switch state at closed throttle.
If idle control is unstable, compare air leaks, throttle state, temperature input, and ECU idle command before adjusting mechanical stops.

Pre-test setup and pinout confirmation

Confirm the exact engine, ECU, connector, and system variant before using a pin number or expected reading.
Print or open the wiring diagram and mark the fuse, relay, ECU pins, connector joins, splices, and ground points.
Inspect the connector physically before probing it. Look for pushed-back pins, spread terminals, corrosion, oil, water, heat marks, and broken locks.
Stabilize battery voltage before testing. Low system voltage can create false sensor, ECU, starter, alternator, and transmission faults.

Expected Readings And What They Mean

Check	Normal Result	What The Result Means
Air-flow signal	Signal rises smoothly with increased air flow	Dropouts or dead spots can cause hesitation, rich/lean trim, or stalling.
Sensor feed and ground	Correct supply voltage and low ground drop	Wrong wiring or poor ground can mimic a failed meter.
Intake leak test	No smoke escaping after the air meter	Any leak after the meter is unmetered air.
Air-flow signal	Signal rises smoothly with increased air flow	Confirm the air meter housing and wiring match the ECU calibration.

Fault Interpretation

Fault Type	Typical Symptom	Next Test
Open circuit	No current flow, no voltage on the load side, or infinite resistance when isolated.	Find the break by halving the circuit and testing from the source toward the load.
High resistance	Voltage appears correct with no load but drops when the circuit is asked to work.	Use voltage-drop testing under load instead of relying on continuity alone.
Short to ground or power	Fuse blows, signal is pinned high or low, or more than one circuit behaves incorrectly.	Disconnect branches until the fault disappears, then inspect that branch closely.

Lexus V8 Swap Application

On a standalone Lexus V8 harness, always confirm the engine family, ECU part number, immobilizer state, transmission type, and body-interface requirements before applying a generic test result.

Many swap problems are caused by missing feeds, poor grounds, incorrect relay control, or connector damage rather than a failed ECU.
