Technical Training Module 08

Charging Systems

Charging-system diagnosis for alternator output, sense circuit, warning lamp, regulation, ripple, belt drive, and voltage drop.

This page is written as a workshop training guide: learn the system, set up the test correctly, prove the circuit, interpret the result, and record the repair.

voltagecurrentresistancegroundrelaysensorignitionbattery

What This Lesson Teaches

Objective 01

Understand what the system is meant to do before testing it.

Objective 02

Identify power, ground, input, output, and load points on the wiring diagram.

Objective 03

Use the correct meter or scope test instead of guessing at components.

Objective 04

Separate a wiring fault from a sensor, actuator, ECU, or mechanical fault.

How The System Works

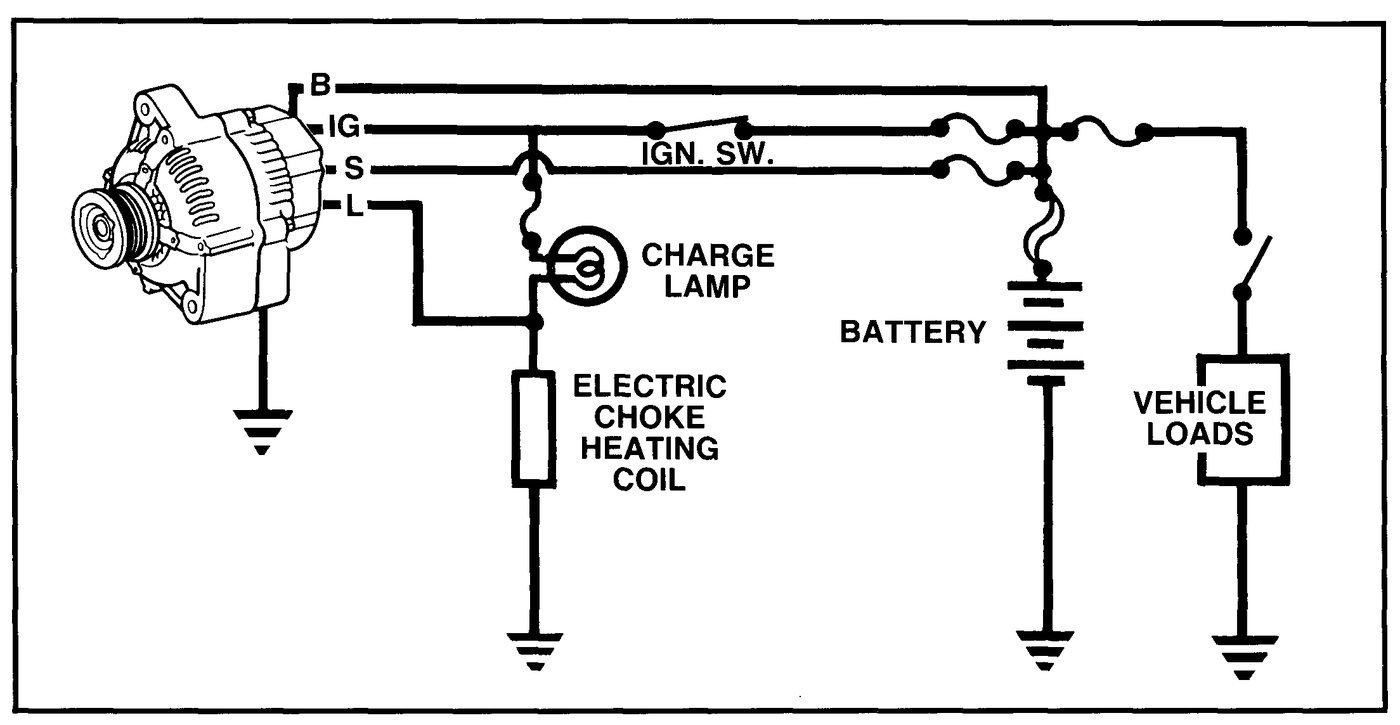

The charging system maintains system voltage after the engine is running. The alternator output, regulator, sense circuit, ignition feed, warning lamp circuit, belt drive, battery condition, and grounds all affect the result.

A charging fault is not always an alternator fault. A poor battery, loose belt, missing ignition feed, open sense wire, bad output cable, or poor ground can make a good alternator look bad.

Engine swaps often relocate the battery or change charge wiring. Output cable size, fuse protection, and sense wiring must be correct for stable voltage.

Tools, Safety, And Setup

Required tools

Digital multimeter with min/max and duty-cycle or frequency capability
Incandescent test light for loaded power/ground checks where safe
Back-probe pins, fused jumper leads, and connector pinout references
Current clamp or low-amp probe for motors, pumps, solenoids, and alternator checks
Oscilloscope or graphing meter for crank, cam, MAF, ignition, and oxygen sensor signals

Safety and setup

Work with the vehicle secure, transmission in park or neutral, wheels chocked, and the ignition state deliberately controlled.
Do not pierce sealed wiring unless there is no better access point. Back-probe from the connector side where possible and reseal anything disturbed.
Use the correct meter range before connecting to a circuit. A meter on the wrong range can damage the meter, the ECU, or the circuit.
Load-test power and ground circuits. An unloaded circuit can show battery voltage and still fail when the component is asked to work.
Disconnect ECUs and sensitive modules before doing resistance checks unless the specific procedure says the circuit can remain connected.

Step By Step Test Procedure

Base charging check

Start with a charged battery and clean terminals.
Measure voltage at the battery with the engine running and electrical loads off.
Turn on headlights, blower, and other loads, then observe whether voltage remains controlled.
Compare voltage at the alternator B+ stud to voltage at the battery positive post to find output-side drop.

Control and ripple check

Confirm ignition feed and sense feed at the alternator connector.
Check the charge warning lamp circuit if the lamp behavior is abnormal.
Use AC voltage or a scope to check excessive diode ripple.
Inspect belt slip, pulley condition, and alternator ground path before condemning the unit.

Pre-test setup and pinout confirmation

Confirm the exact engine, ECU, connector, and system variant before using a pin number or expected reading.
Print or open the wiring diagram and mark the fuse, relay, ECU pins, connector joins, splices, and ground points.
Inspect the connector physically before probing it. Look for pushed-back pins, spread terminals, corrosion, oil, water, heat marks, and broken locks.
Stabilize battery voltage before testing. Low system voltage can create false sensor, ECU, starter, alternator, and transmission faults.

Loaded power and ground verification

Test the feed and ground with the circuit connected and commanded on whenever it is safe to do so.
Compare voltage at the component to voltage at the battery while the circuit is working.
Voltage-drop the power side and ground side separately so the fault is not hidden by a good-looking open-circuit voltage reading.
Do not move to sensor or ECU replacement until the supply and return path are proven under load.

Expected Readings And What They Mean

Check	Normal Result	What The Result Means
Charging voltage	Often about 13.5 to 14.8 volts depending on temperature and load	Always compare to the exact system specification where available.
Output voltage drop	Alternator B+ and battery positive should be close under load	A large difference means cable, fuse link, or connection resistance.
Ripple	Low AC ripple on a healthy rectifier	High ripple can cause ECU, sensor, and idle complaints.

Fault Interpretation

Fault Type	Typical Symptom	Next Test
Open circuit	No current flow, no voltage on the load side, or infinite resistance when isolated.	Find the break by halving the circuit and testing from the source toward the load.
High resistance	Voltage appears correct with no load but drops when the circuit is asked to work.	Use voltage-drop testing under load instead of relying on continuity alone.
Short to ground or power	Fuse blows, signal is pinned high or low, or more than one circuit behaves incorrectly.	Disconnect branches until the fault disappears, then inspect that branch closely.

Lexus V8 Swap Application

On a standalone Lexus V8 harness, always confirm the engine family, ECU part number, immobilizer state, transmission type, and body-interface requirements before applying a generic test result.

Many swap problems are caused by missing feeds, poor grounds, incorrect relay control, or connector damage rather than a failed ECU.
