Fuel Systems: Closed Loop and Fuel Trim
Closed-loop and fuel-trim diagnosis for oxygen feedback, air-fuel correction, vacuum leaks, fuel pressure, injector balance, and sensor bias.

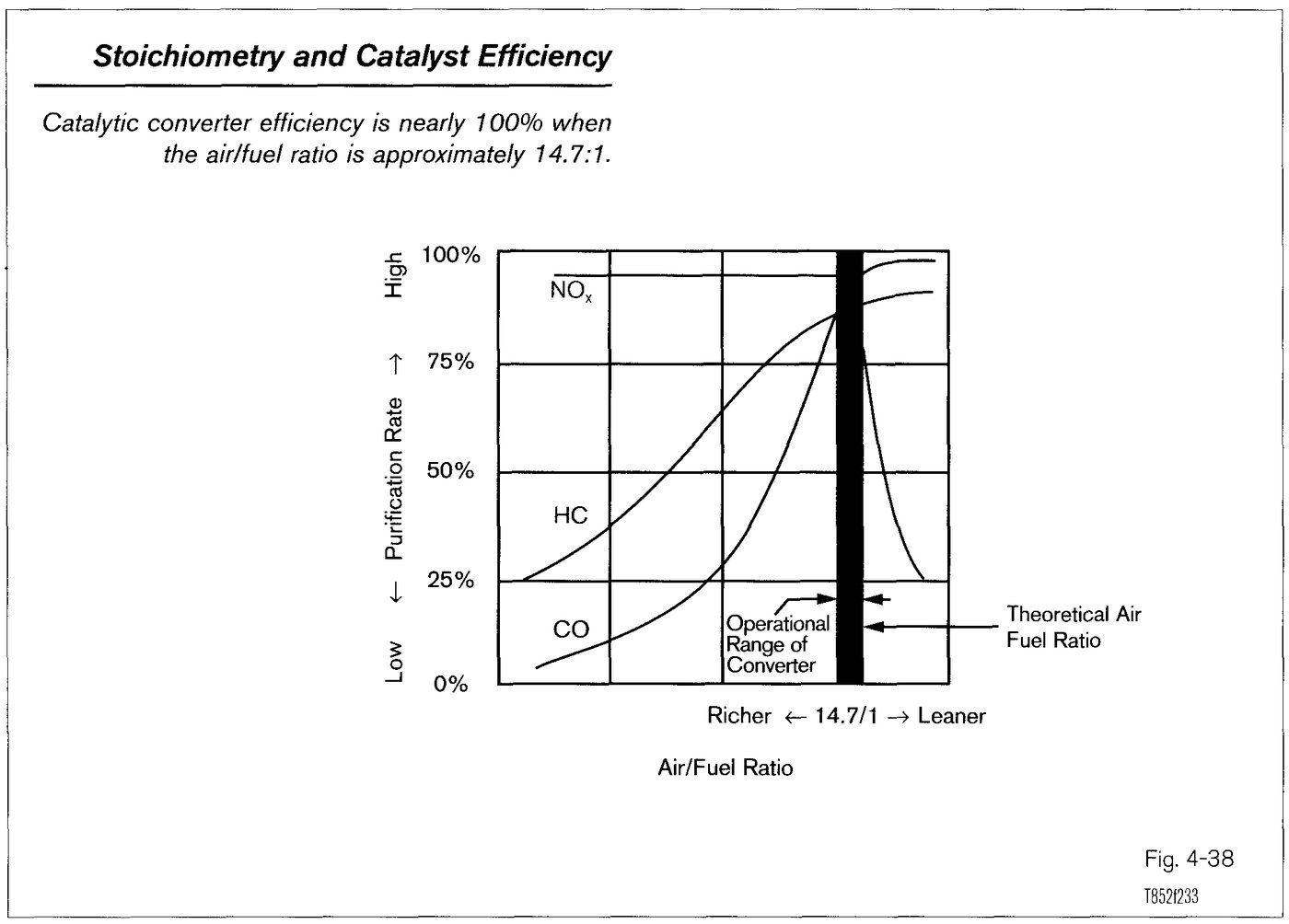

How The System Works
Closed-loop control starts after the ECU has enough temperature, time, and sensor information to use oxygen or air-fuel feedback. The ECU then adjusts injector duration to correct the mixture.
Fuel trim is not the fault by itself. It is the ECU’s response to a mixture error or to a sensor signal that makes the ECU believe the mixture is wrong.
A lean correction can come from vacuum leaks, low fuel pressure, exhaust leaks, biased air-flow readings, weak injectors, or incorrect sensor feedback. A rich correction can come from high fuel pressure, leaking injectors, wrong temperature input, restricted air, or biased oxygen feedback.
Step By Step Test Procedure
Closed-loop readiness check
- Warm the engine fully and confirm coolant temperature is realistic.
- Confirm the oxygen or air-fuel sensor heater works and the sensor is active.
- Verify the ECU has entered closed loop before judging fuel trim.
- If the system stays open loop, diagnose enable conditions before adjusting fuel or replacing sensors.
Fuel trim direction test
- Record short-term and long-term correction at idle, light cruise, and under gentle load.
- If trim is most abnormal at idle, look hard for vacuum leaks, PCV leaks, brake booster leaks, and injector sealing.
- If trim is abnormal under load, test fuel pressure, fuel volume, air-flow signal, and exhaust restriction.
- Force a small rich or lean change only if safe, and confirm the sensor and trim respond in the correct direction.
Sensor bias separation
- Compare coolant temperature, intake temperature, throttle, air-flow, and oxygen feedback against actual conditions.
- Check for exhaust leaks ahead of the oxygen sensor.
- Check fuel pressure and injector leakage before blaming oxygen feedback.
- If the engine runs well but trim is extreme, suspect a biased input or calibration mismatch.
Expected Readings And What They Mean
| Check | Normal Result | What The Result Means |
|---|---|---|
| Closed loop state | Active only after required temperature and time conditions | Open-loop diagnosis is different from closed-loop trim diagnosis. |
| Short-term trim | Moves as the ECU corrects immediate mixture error | Direction matters more than the exact number without specs. |
| Long-term trim | Shows learned correction over time | A large learned correction means the ECU has been compensating repeatedly. |
| Oxygen feedback | Responds to real rich/lean changes | A dead, slow, or biased sensor can mislead trim. |
Use This Carefully
This training page is an independent Lexus V8 Engines LLC rewrite for educational and diagnostic support. Lexus V8 Engines LLC is not affiliated with or endorsed by Toyota Motor Corporation. Always use the correct factory service information for final specifications, safety procedures, and vehicle-specific wiring.
