Technical Training Module 14

Computers and Logic Circuits

ECU logic training for inputs, processing, outputs, reference voltage, grounds, fail-safe strategy, and signal interpretation.

This page is written as a workshop training guide: learn the system, set up the test correctly, prove the circuit, interpret the result, and record the repair.

voltagegroundrelaysolenoidsensoractuatorECUinjector

What This Lesson Teaches

Objective 01

Understand what the system is meant to do before testing it.

Objective 02

Identify power, ground, input, output, and load points on the wiring diagram.

Objective 03

Use the correct meter or scope test instead of guessing at components.

Objective 04

Separate a wiring fault from a sensor, actuator, ECU, or mechanical fault.

How The System Works

An ECU makes decisions from input signals, internal programming, and output driver control. It needs stable battery power, ignition power, clean grounds, reference voltage, and valid sensor information before outputs can be trusted.

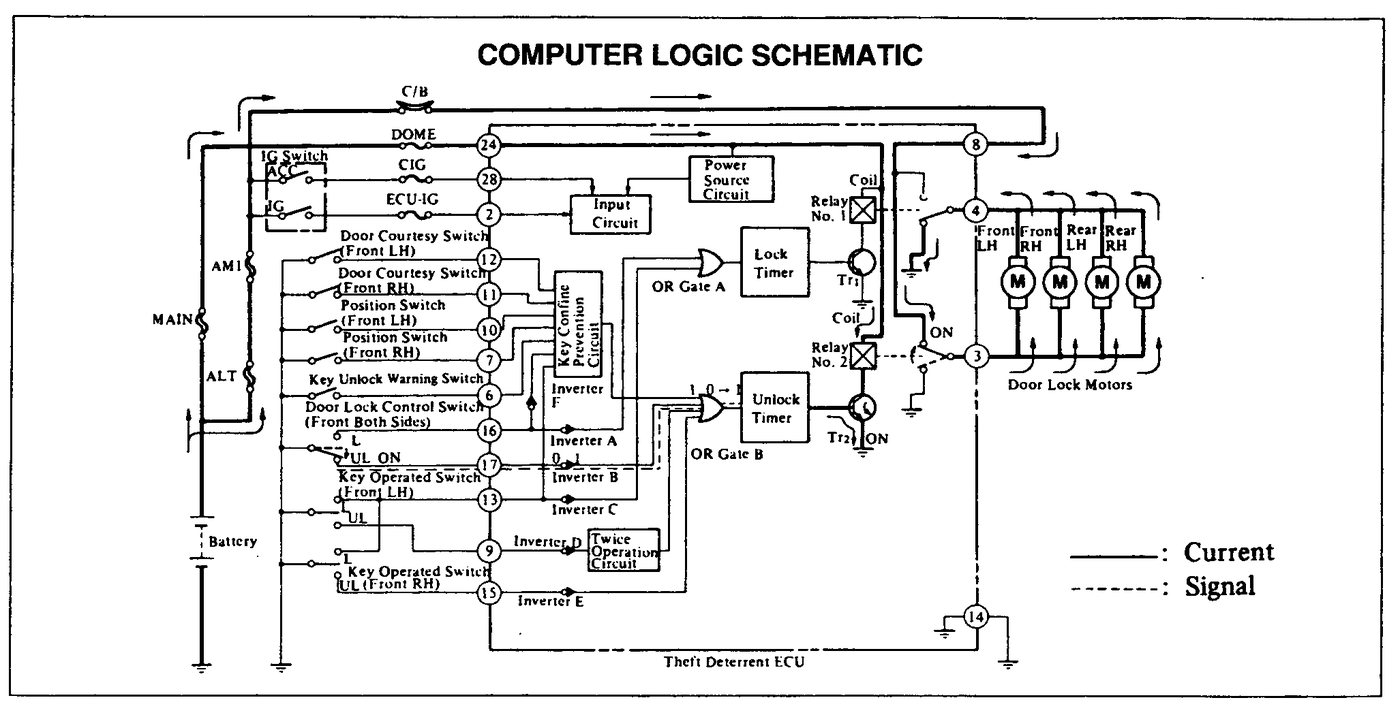

Logic circuits treat signals as conditions. A switch may be on or off, a sensor may move through a voltage range, and a pulse signal may carry frequency or duty-cycle information. The ECU compares these inputs to expected patterns.

A diagnostic code tells the technician where the ECU saw an electrical or logical problem. It does not automatically identify the failed part.

Tools, Safety, And Setup

Required tools

Digital multimeter with min/max and duty-cycle or frequency capability
Incandescent test light for loaded power/ground checks where safe
Back-probe pins, fused jumper leads, and connector pinout references
Current clamp or low-amp probe for motors, pumps, solenoids, and alternator checks
Oscilloscope or graphing meter for crank, cam, MAF, ignition, and oxygen sensor signals

Safety and setup

Work with the vehicle secure, transmission in park or neutral, wheels chocked, and the ignition state deliberately controlled.
Do not pierce sealed wiring unless there is no better access point. Back-probe from the connector side where possible and reseal anything disturbed.
Use the correct meter range before connecting to a circuit. A meter on the wrong range can damage the meter, the ECU, or the circuit.
Load-test power and ground circuits. An unloaded circuit can show battery voltage and still fail when the component is asked to work.
Disconnect ECUs and sensitive modules before doing resistance checks unless the specific procedure says the circuit can remain connected.

Step By Step Test Procedure

ECU power and ground foundation check

Identify all constant battery feeds, ignition feeds, and ground pins for the ECU.
Check voltage at the ECU pins with the ECU connected and the circuit loaded.
Voltage-drop each ECU ground while the system is powered.
Do not diagnose sensor logic until ECU power and ground are proven stable.

Input-to-output logic check

Pick one symptom and identify the related ECU inputs and outputs.
Verify that each input changes logically when the condition changes.
Verify that the ECU output command changes when the required inputs are present.
If input is correct but output is missing, check ECU enable conditions, immobilizer, fault strategy, and driver circuit load before replacing the ECU.

Pre-test setup and pinout confirmation

Confirm the exact engine, ECU, connector, and system variant before using a pin number or expected reading.
Print or open the wiring diagram and mark the fuse, relay, ECU pins, connector joins, splices, and ground points.
Inspect the connector physically before probing it. Look for pushed-back pins, spread terminals, corrosion, oil, water, heat marks, and broken locks.
Stabilize battery voltage before testing. Low system voltage can create false sensor, ECU, starter, alternator, and transmission faults.

Loaded power and ground verification

Test the feed and ground with the circuit connected and commanded on whenever it is safe to do so.
Compare voltage at the component to voltage at the battery while the circuit is working.
Voltage-drop the power side and ground side separately so the fault is not hidden by a good-looking open-circuit voltage reading.
Do not move to sensor or ECU replacement until the supply and return path are proven under load.

Expected Readings And What They Mean

Check	Normal Result	What The Result Means
Battery supply	12.4 to 12.8 volts key off on a charged battery	Low battery voltage can make good wiring look faulty. Charge or stabilize the battery first.
Five-volt reference	Usually close to 5.0 volts with sensor connected	A shorted sensor or harness branch can pull the reference down for several sensors at once.
Ground voltage drop	As close to 0.0 volts as practical under load	Voltage on the ground side means resistance in the ground path.
Switch or relay feed	Battery voltage on the supply side and controlled voltage on the output side	Test both sides of the load. One good side does not prove the full circuit works.

Fault Interpretation

Fault Type	Typical Symptom	Next Test
Open circuit	No current flow, no voltage on the load side, or infinite resistance when isolated.	Find the break by halving the circuit and testing from the source toward the load.
High resistance	Voltage appears correct with no load but drops when the circuit is asked to work.	Use voltage-drop testing under load instead of relying on continuity alone.
Short to ground or power	Fuse blows, signal is pinned high or low, or more than one circuit behaves incorrectly.	Disconnect branches until the fault disappears, then inspect that branch closely.

Lexus V8 Swap Application

On a standalone Lexus V8 harness, always confirm the engine family, ECU part number, immobilizer state, transmission type, and body-interface requirements before applying a generic test result.

Many swap problems are caused by missing feeds, poor grounds, incorrect relay control, or connector damage rather than a failed ECU.
