Technical Training Module 42

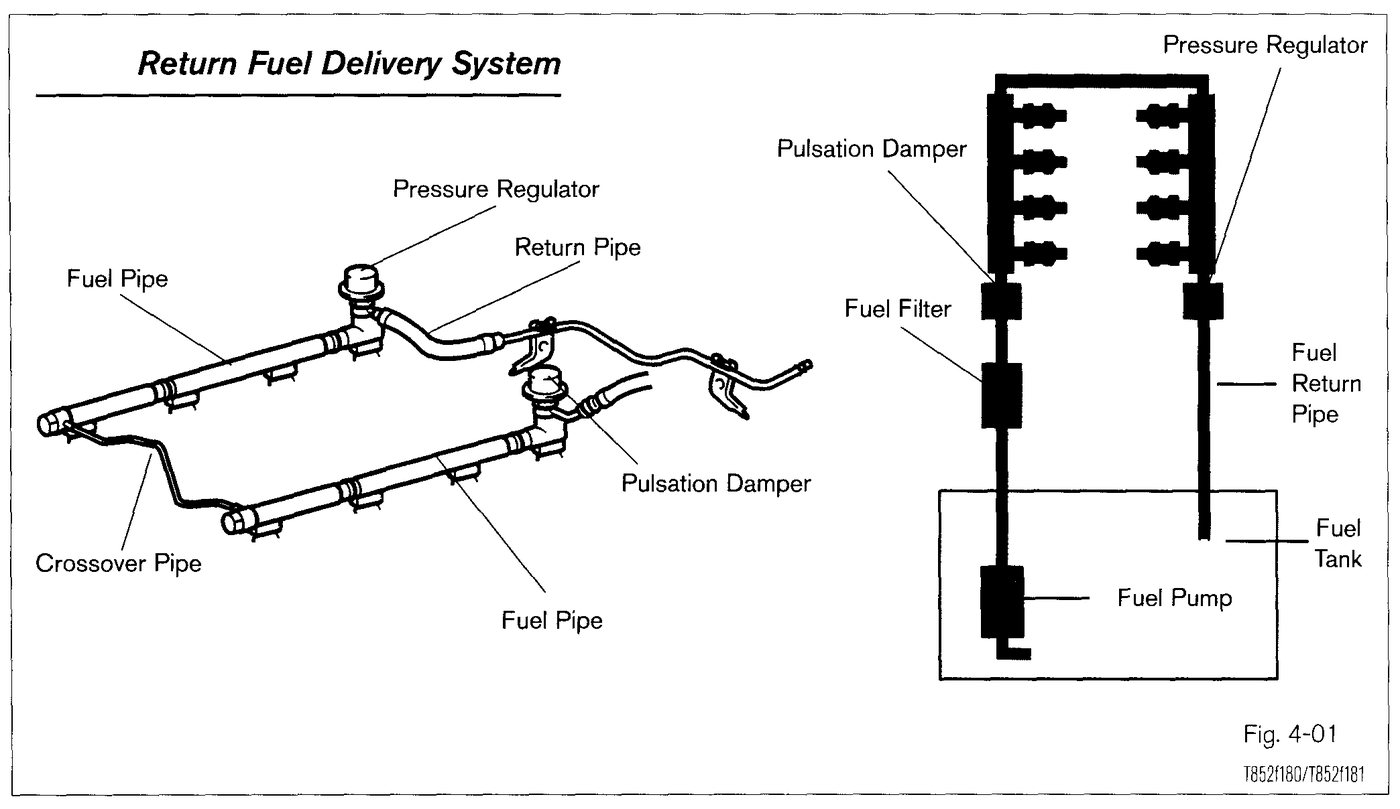

Fuel Systems: Overview
Fuel Systems: Overview for EFI fuel supply, injector control, air measurement, closed-loop trim, and correct diagnostic order.
How The System Works
EFI control depends on correct air measurement, fuel pressure, injector operation, ignition information, temperature input, throttle information, oxygen or air-fuel feedback, and ECU power/ground integrity.
A fuel-related symptom is not automatically a fuel pump fault. Lean, rich, hard-start, stall, and hesitation problems can be caused by incorrect air flow information, vacuum leaks, pressure loss, injector faults, ignition faults, or ECU enable conditions.
Correct diagnosis follows the path: confirm power and ground, confirm mechanical air/fuel basics, confirm sensor input, confirm ECU command, then confirm actuator response.
Step By Step Test Procedure
EFI no-start or poor-running foundation check
- Confirm battery voltage, ECU power feeds, ECU grounds, and EFI relay operation.
- Confirm engine speed signal reaches the ECU during cranking.
- Check for injector power feed and ECU pulsed ground command.
- Confirm fuel pressure and volume before changing injectors or ECU parts.
- Check air induction leaks and metered-air path before adjusting fuel strategy.
Injector control check
- Check that each injector has the correct power feed with ignition on or while cranking, depending on system design.
- Use a noid light, scope, or current ramp to verify ECU pulsed control.
- Measure injector resistance only with the circuit isolated and compare all injectors.
- If pulse is missing on all injectors, check engine speed input, ECU power/ground, immobilizer state, and EFI main relay before condemning the ECU.
Expected Readings And What They Mean
| Check | Normal Result | What The Result Means |
|---|---|---|
| Injector feed | Battery voltage on the feed side when the circuit is enabled | A missing common feed affects all injectors. |
| Injector pulse | Pulsed ground or controlled current while cranking/running | No pulse may be an ECU enable issue, not an injector issue. |
| Fuel pressure | Must match the engine and regulator design | Pressure without volume can still fail under load. |
| Fuel trim | Near center when the system is healthy and closed loop is active | Large correction means the ECU is compensating for a real or perceived mixture error. |
Use This Carefully
This training page is an independent Lexus V8 Engines LLC rewrite for educational and diagnostic support. Lexus V8 Engines LLC is not affiliated with or endorsed by Toyota Motor Corporation. Always use the correct factory service information for final specifications, safety procedures, and vehicle-specific wiring.
