Classify the device
- Confirm the exact donor component and determine whether it is a sensor or actuator before choosing a test method.
Technical Training Module 15
Sensors and Actuators
Sensor and actuator training for input signals, ECU decisions, output commands, load testing, and fault separation.
voltageresistancegroundrelaysolenoidsensoractuatorECU
How The System Works

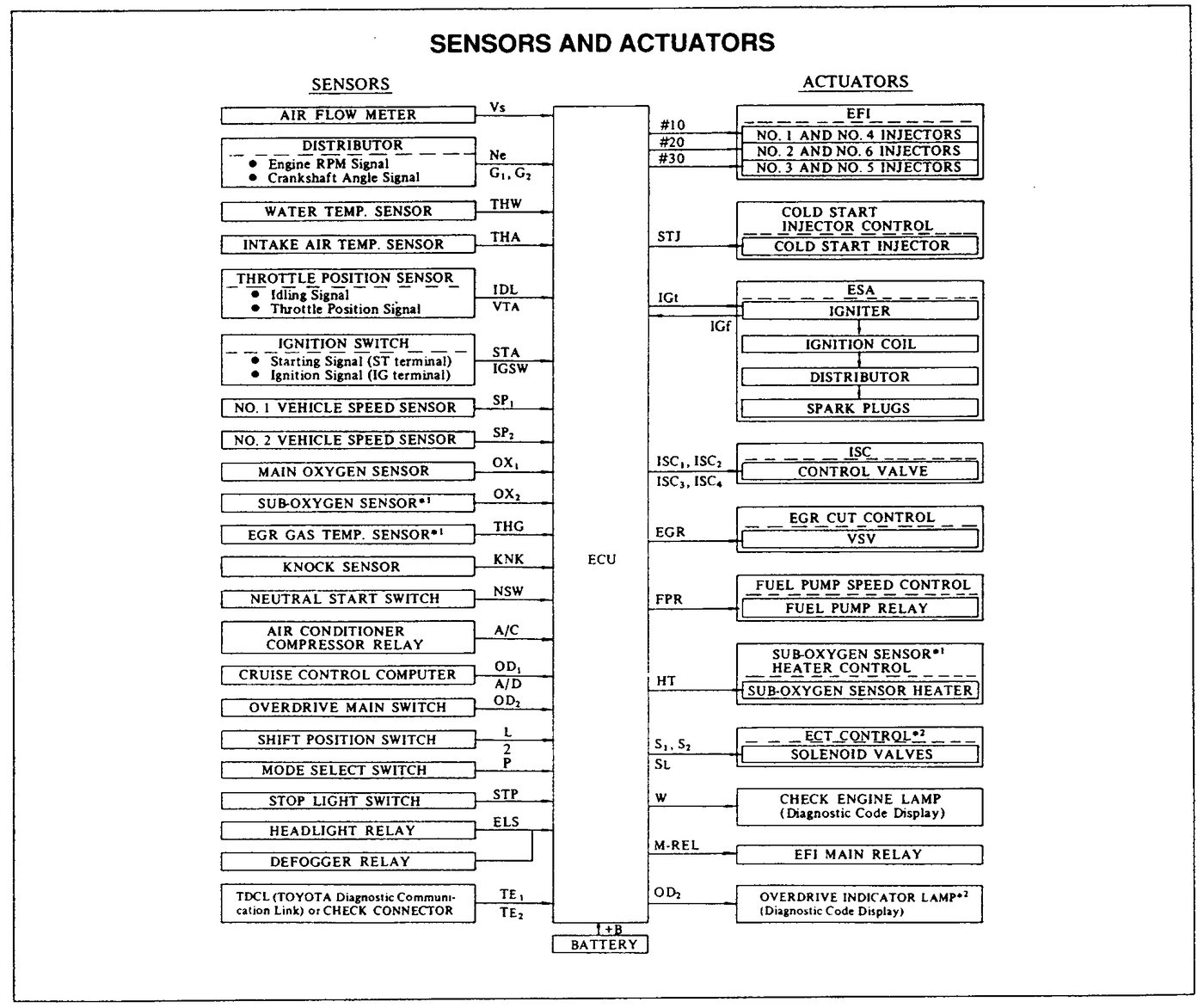

Sensors convert temperature, position, pressure or rotation into a signal the ECU can interpret. Depending on the device, that signal may be resistance, voltage, frequency or a digital message. Some sensors share a reference or sensor-ground branch, so one shorted sensor or mis-pinned swap connector can disturb several readings.
Actuators convert ECU commands into physical work through relays, solenoids, injectors or motors. They may have a common power feed with ECU-switched control, or a more complex multi-wire driver. Accurate diagnosis separately proves the input value, harness path, ECU command and actuator response.
Step By Step Test Procedure
Map every circuit
- Use the correct diagram to identify supply, ground, signal or control circuits and any shared splices.
Test a sensor logically
- Compare scan data with the actual condition, then test supply, ground and signal only if the displayed value is implausible.
Trace the signal path
- If the signal is correct at the sensor but wrong in scan data, test the harness to the ECU and inspect shared reference or ground branches.
Test an actuator under command
- Create the command with a supported active test or normal operating condition and verify its feed, ECU control and physical response.
Isolate and confirm
- Disconnect a shorted branch or load before reconnecting the ECU, repair the fault and repeat the same input-to-output test.
Expected Readings And What They Mean
| Check | Expected Evidence | Diagnostic Meaning |
|---|---|---|
| Sensor supply and ground | Supply and ground match the exact circuit design and remain stable with the sensor connected | A shared supply or ground fault can disturb several sensors simultaneously. |
| Sensor response | Signal changes smoothly and plausibly as the measured condition changes | Fixed, erratic or implausible response indicates sensor, connector or signal-wire trouble. |
| Actuator feed and control | The actuator receives its specified feed and an ECU control signal when commanded | Missing feed is a supply fault; feed without control requires command, wiring and driver checks. |
| Commanded versus actual response | The actuator performs the expected physical action during an approved active or operating test | Correct electrical command without movement indicates an actuator or mechanical problem. |
Use This Carefully
This training page is an independent Lexus V8 Engines LLC rewrite for educational and diagnostic support. Lexus V8 Engines LLC is not affiliated with or endorsed by Toyota Motor Corporation. Always use the correct factory service information for final specifications, safety procedures, and vehicle-specific wiring.
