Technical Training Module 16

Electronic Control Transmission

Electronic Control Transmission for electronically controlled Toyota/Lexus automatic transmissions, solenoids, inputs, outputs, and swap checks.

This page is written as a workshop training guide: learn the system, set up the test correctly, prove the circuit, interpret the result, and record the repair.

voltagecurrentresistancegroundrelaysolenoidsensoractuator

What This Lesson Teaches

Objective 01

Understand what the system is meant to do before testing it.

Objective 02

Identify power, ground, input, output, and load points on the wiring diagram.

Objective 03

Use the correct meter or scope test instead of guessing at components.

Objective 04

Separate a wiring fault from a sensor, actuator, ECU, or mechanical fault.

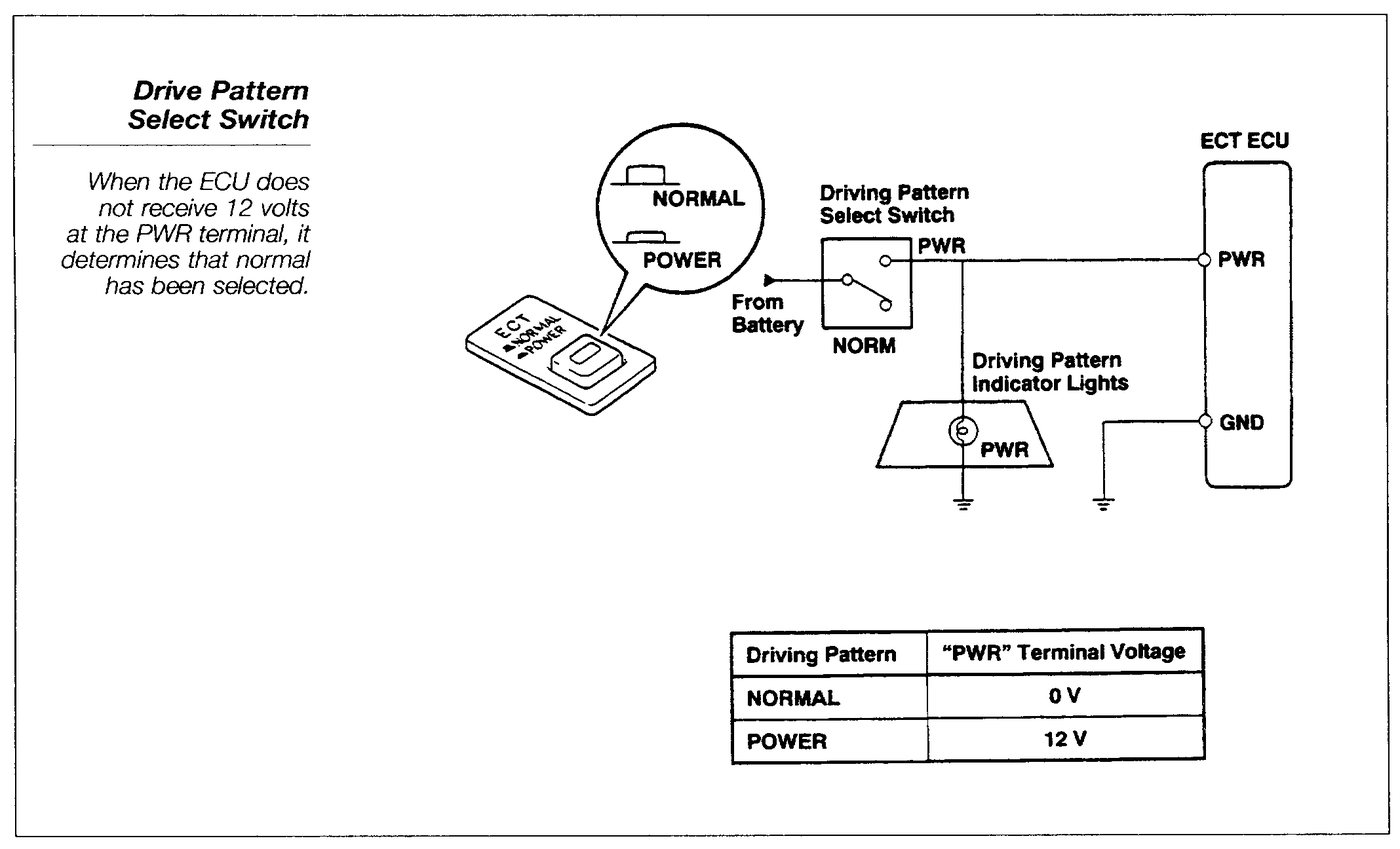

How The System Works

Electronic automatic transmission control depends on sensor inputs, ECU or transmission ECU logic, solenoid outputs, hydraulic pressure, mechanical clutch operation, inhibitor switch position, and correct wiring.

Electrical testing can prove whether a solenoid is commanded and whether the circuit is healthy, but it cannot by itself prove hydraulic pressure or internal clutch condition. Good diagnosis separates electrical command from mechanical response.

In Lexus V8 conversions, transmission matching matters. ECU type, shift solenoid wiring, speed sensor information, throttle signal, range switch, and overdrive control must match the engine and transmission combination.

Tools, Safety, And Setup

Required tools

Digital multimeter with min/max and duty-cycle or frequency capability
Incandescent test light for loaded power/ground checks where safe
Back-probe pins, fused jumper leads, and connector pinout references
Current clamp or low-amp probe for motors, pumps, solenoids, and alternator checks
Oscilloscope or graphing meter for crank, cam, MAF, ignition, and oxygen sensor signals

Safety and setup

Work with the vehicle secure, transmission in park or neutral, wheels chocked, and the ignition state deliberately controlled.
Do not pierce sealed wiring unless there is no better access point. Back-probe from the connector side where possible and reseal anything disturbed.
Use the correct meter range before connecting to a circuit. A meter on the wrong range can damage the meter, the ECU, or the circuit.
Load-test power and ground circuits. An unloaded circuit can show battery voltage and still fail when the component is asked to work.
Disconnect ECUs and sensitive modules before doing resistance checks unless the specific procedure says the circuit can remain connected.

Step By Step Test Procedure

Solenoid circuit test

Identify each shift, lock-up, and line-pressure solenoid pin from the transmission connector and ECU pinout.
Measure solenoid resistance with the ECU disconnected if required.
Check for shorts to ground, shorts to power, and shorts between solenoid wires.
Command solenoids with the correct test mode or road-test condition and verify ECU output with a scope or meter.

Input check before blaming the transmission

Confirm throttle position, engine speed, vehicle speed, temperature, brake switch, and range switch inputs.
Check that sensor values change smoothly and match the actual vehicle condition.
Verify power and ground to the transmission ECU or engine ECU transmission-control pins.
If inputs and outputs are correct, move to hydraulic pressure and mechanical checks.

Pre-test setup and pinout confirmation

Confirm the exact engine, ECU, connector, and system variant before using a pin number or expected reading.
Print or open the wiring diagram and mark the fuse, relay, ECU pins, connector joins, splices, and ground points.
Inspect the connector physically before probing it. Look for pushed-back pins, spread terminals, corrosion, oil, water, heat marks, and broken locks.
Stabilize battery voltage before testing. Low system voltage can create false sensor, ECU, starter, alternator, and transmission faults.

Loaded power and ground verification

Test the feed and ground with the circuit connected and commanded on whenever it is safe to do so.
Compare voltage at the component to voltage at the battery while the circuit is working.
Voltage-drop the power side and ground side separately so the fault is not hidden by a good-looking open-circuit voltage reading.
Do not move to sensor or ECU replacement until the supply and return path are proven under load.

Expected Readings And What They Mean

Check	Normal Result	What The Result Means
Solenoid resistance	Compare to the exact solenoid specification	An open, shorted, or wrong solenoid can set codes and affect shifts.
Range switch	Only the selected range circuit should be active	Multiple active ranges or no active range can inhibit starting or shift logic.
Speed sensor	AC, digital, or frequency signal depending on sensor type	Missing speed information can cause limp mode, no lock-up, or wrong shift timing.

Fault Interpretation

Fault Type	Typical Symptom	Next Test
Open circuit	No current flow, no voltage on the load side, or infinite resistance when isolated.	Find the break by halving the circuit and testing from the source toward the load.
High resistance	Voltage appears correct with no load but drops when the circuit is asked to work.	Use voltage-drop testing under load instead of relying on continuity alone.
Short to ground or power	Fuse blows, signal is pinned high or low, or more than one circuit behaves incorrectly.	Disconnect branches until the fault disappears, then inspect that branch closely.

Lexus V8 Swap Application

On a standalone Lexus V8 harness, always confirm the engine family, ECU part number, immobilizer state, transmission type, and body-interface requirements before applying a generic test result.

Many swap problems are caused by missing feeds, poor grounds, incorrect relay control, or connector damage rather than a failed ECU.
